Individual hose record

73050200A963 Hose Repair Specifications

Excavator · Sunward · SWE215F-5 · Hydraulic Tank

Finished length670 mm

Locate this hose

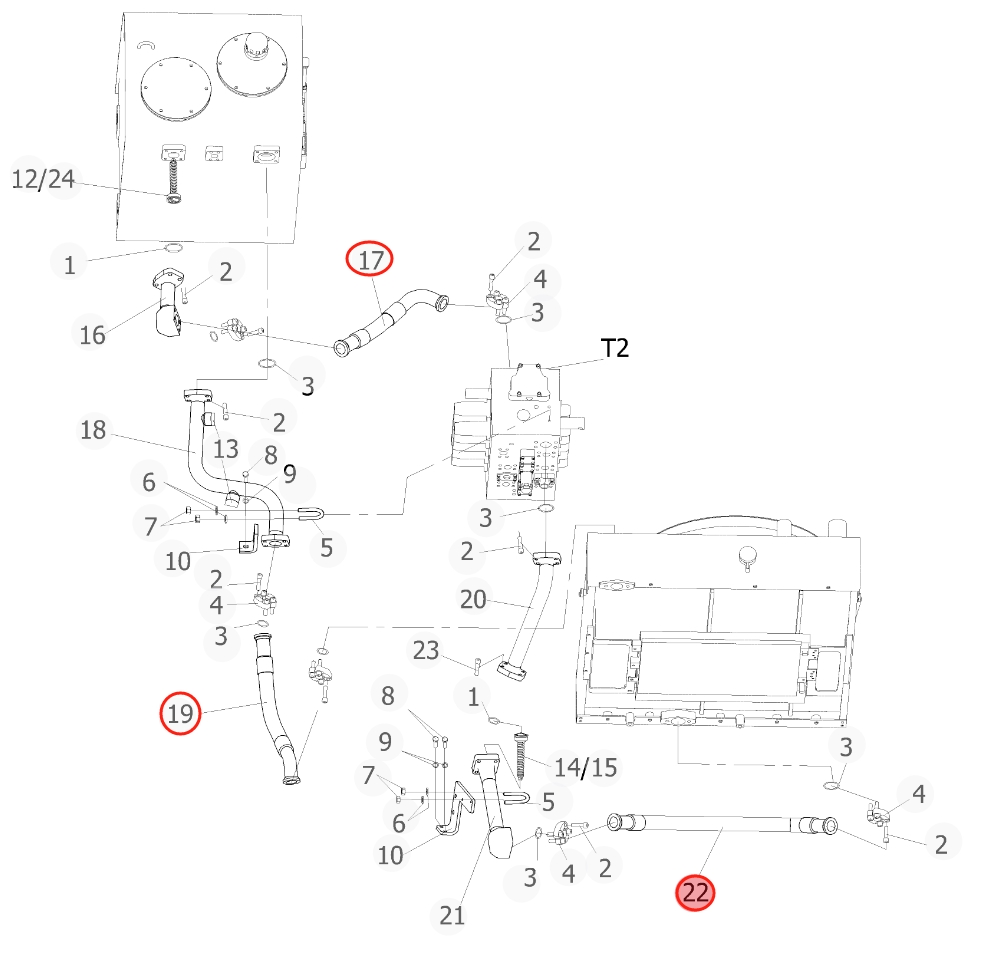

Installation diagram — Pipe No. 19

Locate Pipe No. 19 in the diagram, then confirm part number 73050200A963 before removing the hose.

Sunward SWE215F-5 installation diagram showing hydraulic hose 73050200A963 at Pipe No. 19 — Sunward SWE215F-5Part 73050200A963 · Pipe No. 19Open full-size diagram

Repair specifications

Part number: 73050200A963
Diagram pipe number: 19
Installation route: 液压油箱~散热器
Hose specification: DN40;1SN-24;5MPa
Finished length: 670 mm
Working pressure: 5 MPa
Left fitting: Light-series flangeOriginal Chinese: 法兰-轻型
Right fitting: 45°法兰-轻型
Quantity: 1
