Individual hose record

730501002008 Hose Repair Specifications

Excavator · Sunward · SWE150E · Attachments

Finished length640 mm

Locate this hose

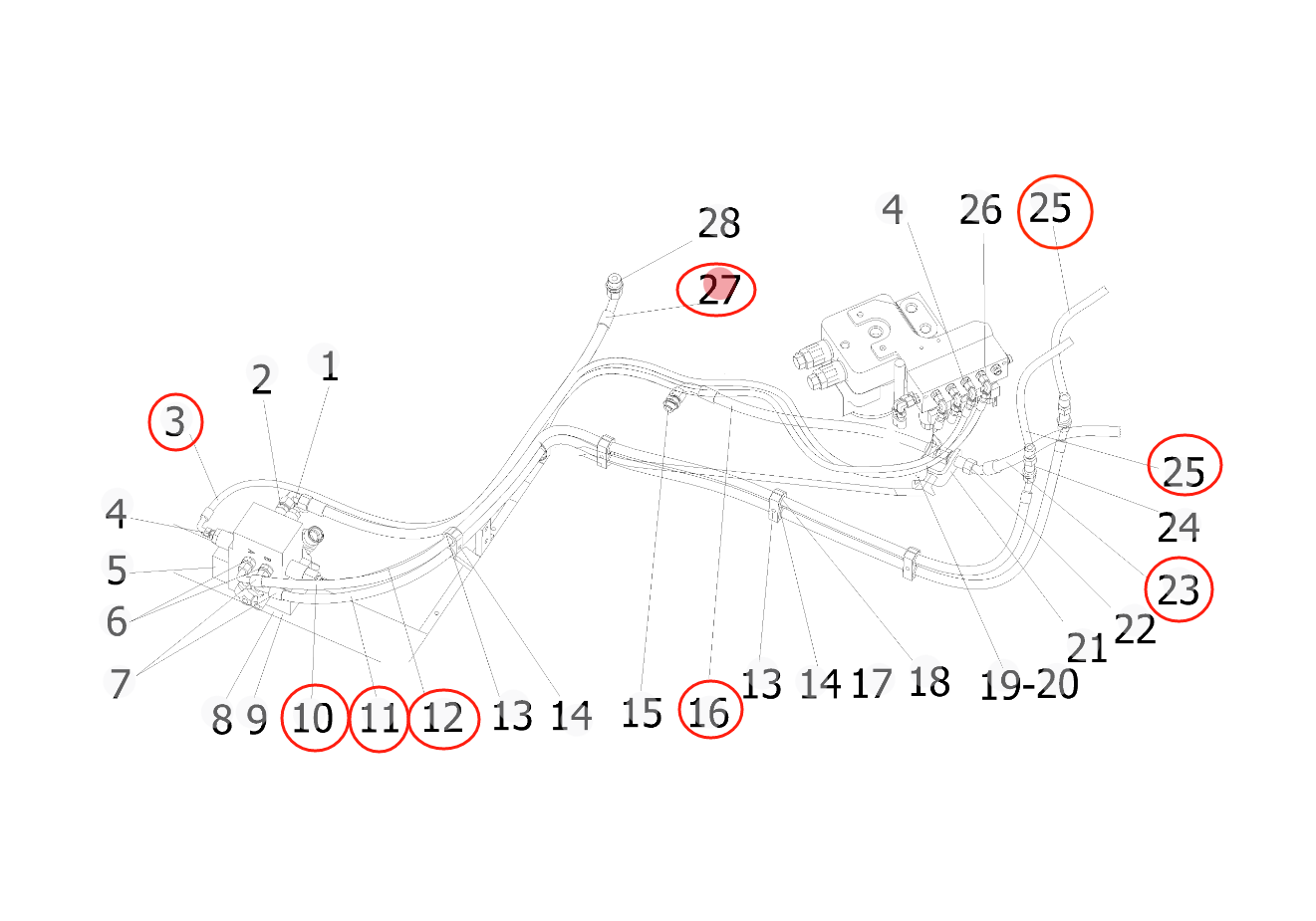

Installation diagram — Pipe No. 16

Locate Pipe No. 16 in the diagram, then confirm part number 730501002008 before removing the hose.

Sunward SWE150E installation diagram showing hydraulic hose 730501002008 at Pipe No. 16
Sunward SWE150EPart 730501002008 · Pipe No. 16Open full-size diagram

Repair specifications

Part number
730501002008
Diagram pipe number
16
Installation route
接线板(回转马达旁)~
Hose specification
DN12;1SN-08;17.2MPa
Finished length
640 mm
Working pressure
17.2 MPa
Left fitting
公制内螺纹24°锥带O形圈-轻型
Right fitting
90°公制内螺纹24°锥带O形圈-轻型
Quantity
1

Same system

Related Hoses

Diagram Pipe No. 12

73050200A092

Installation route: 控制阀~

Length
1,870 mm
Specification
DN6;1SN-04;22.5MPa
Left fitting
公制内螺纹24°锥带O形圈-轻型
Right fitting
45°公制内螺纹24°锥带O形圈-轻型
View full repair specifications

Diagram Pipe No. 10

73050200A093

Installation route: 控制阀~接头(回转马达旁)

Length
2,100 mm
Specification
DN10;2SN-06;35MPa
Left fitting
公制内螺纹24°锥带O形圈-轻型
Right fitting
45°公制内螺纹24°锥带O形圈-轻型
View full repair specifications

Diagram Pipe No. 25

73050200A095

Installation route: 接头(回转马达旁)~

Length
950 mm
Specification
DN10;2SN-06;35MPa
Left fitting
公制内螺纹24°锥带O形圈-轻型
Right fitting
45°公制内螺纹24°锥带O形圈-轻型
View full repair specifications

Diagram Pipe No. 3

730502000970

Installation route: 控制阀~电磁阀(回转马达)

Length
2,400 mm
Specification
DN6;1SN-04;22.5MPa
Left fitting
公制内螺纹24°锥带O形圈-轻型
Right fitting
90°公制内螺纹24°锥带O形圈-轻型
View full repair specifications

Diagram Pipe No. 11

73050200A094

Installation route: 控制阀~接头(回转马达旁)

Length
2,200 mm
Specification
DN10;2SN-06;35MPa
Left fitting
公制内螺纹24°锥带O形圈-轻型
Right fitting
45°公制内螺纹24°锥带O形圈-轻型
View full repair specifications

Diagram Pipe No. 27

73050200A096

Installation route: 接头(回转马达旁)~

Length
980 mm
Specification
DN12;1SN-08;17.2MPa
Left fitting
公制内螺纹24°锥带O形圈-轻型
Right fitting
90°公制内螺纹24°锥带O形圈-轻型
View full repair specifications
