Individual hose record

4203081 Hose Repair Specifications

Excavator · Hitachi · EX200LC · Solenoid Valve

Finished length550 mm

Locate this hose

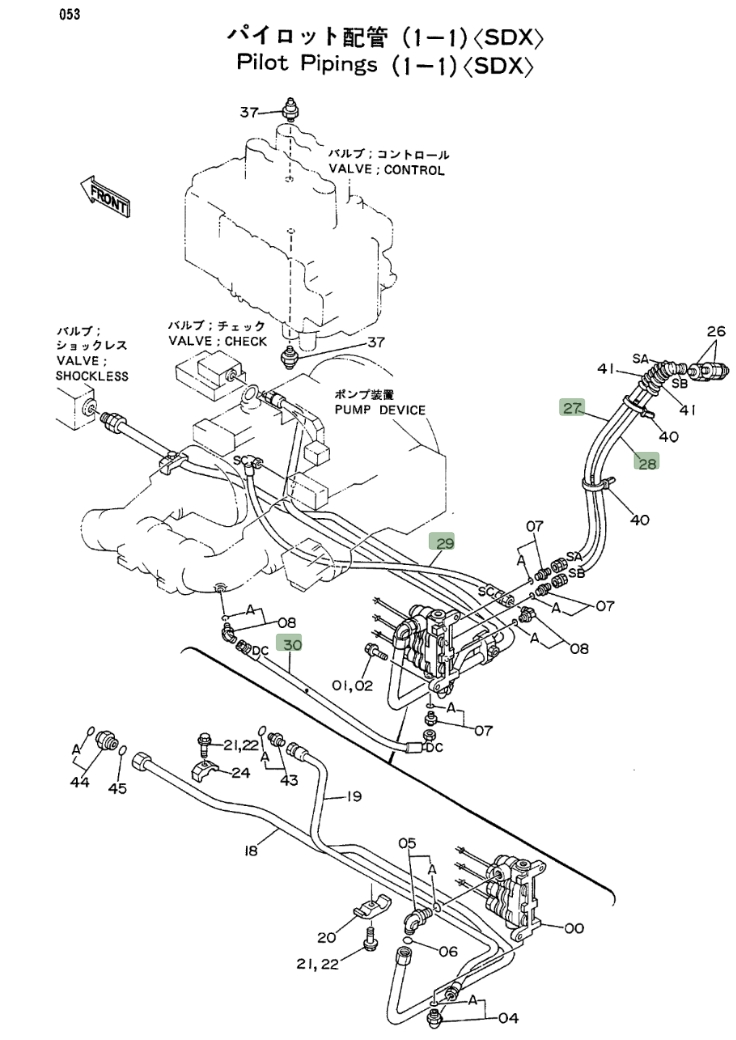

Installation diagram — Pipe No. 30

Locate Pipe No. 30 in the diagram, then confirm part number 4203081 before removing the hose.

Hitachi EX200LC installation diagram showing hydraulic hose 4203081 at Pipe No. 30 — Hitachi EX200LCPart 4203081 · Pipe No. 30Open full-size diagram

Repair specifications

Part number: 4203081
Diagram pipe number: 30
Installation route: 电磁阀~吸油铁管
Hose specification: DN6;2层纤维-4;14MPa
Finished length: 550 mm
Working pressure: 14 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥
Quantity: 1
