Individual hose record
4648205 Hose Repair Specifications
Excavator · Hitachi · ZX850LC-3 · Attachments – Breaker
Finished length650 mm
Locate this hose

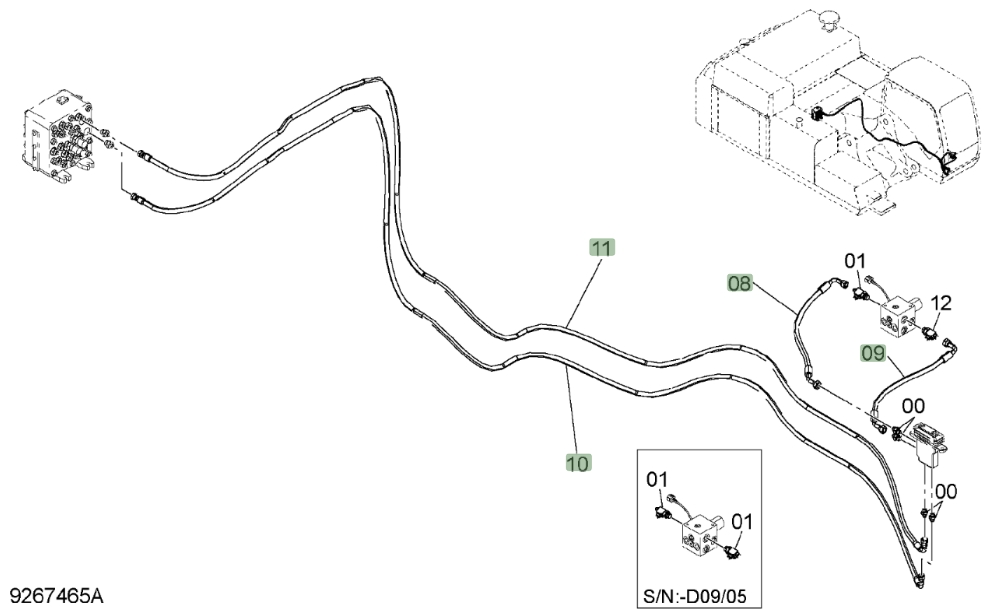

Installation diagram — Pipe No. 8
Locate Pipe No. 8 in the diagram, then confirm part number 4648205 before removing the hose.
Repair specifications
- Part number
- 4648205
- Diagram pipe number
- 8
- Installation route
- 破碎器踏板~进回油阀
- Hose specification
- DN10;1SN-6;7Mpa
- Finished length
- 650 mm
- Working pressure
- 7 MPa
- Left fitting
- 45°美制内螺纹37°内锥
- Right fitting
- 90°美制内螺纹37°内锥
- Quantity
- 1
