Individual hose record

KHJ15180 Hose Repair Specifications

Excavator · Case · CX240BLR · Attachments – Breaker

Finished length950 mm

Locate this hose

Installation diagram — Pipe No. 53

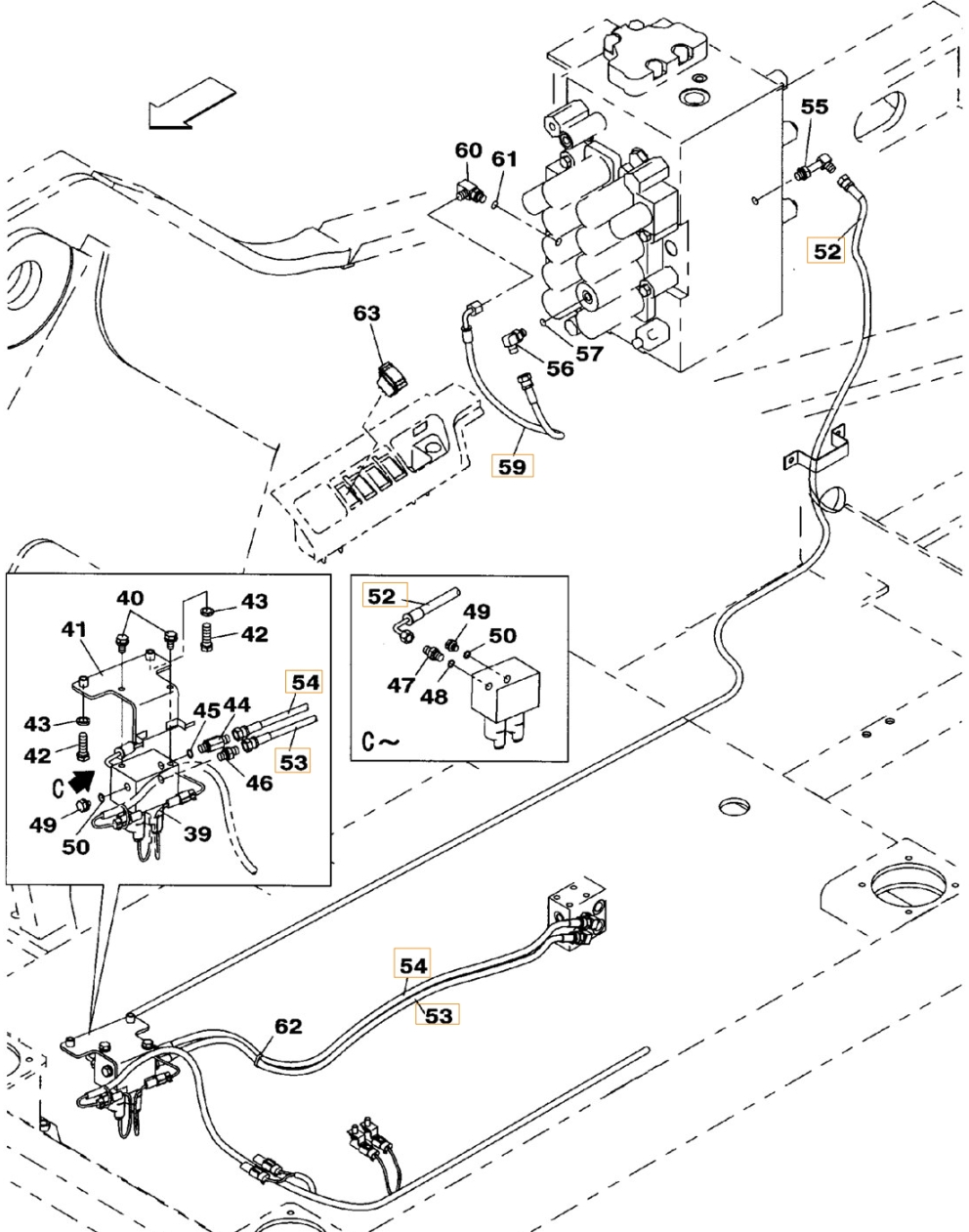

Locate Pipe No. 53 in the diagram, then confirm part number KHJ15180 before removing the hose.

Case CX240BLR installation diagram showing hydraulic hose KHJ15180 at Pipe No. 53 — **Case CX240BLR**Part KHJ15180 · Pipe No. 53Open full-size diagram

Repair specifications

Part number: KHJ15180
Diagram pipe number: 53
Installation route: 电磁阀(破碎器踏板)~进回油阀
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 950 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Quantity: 1
