Individual hose record

9199986 Hose Repair Specifications

Excavator · Hitachi · ZX240 · Swivel Joint

Finished length2,500 mm

Locate this hose

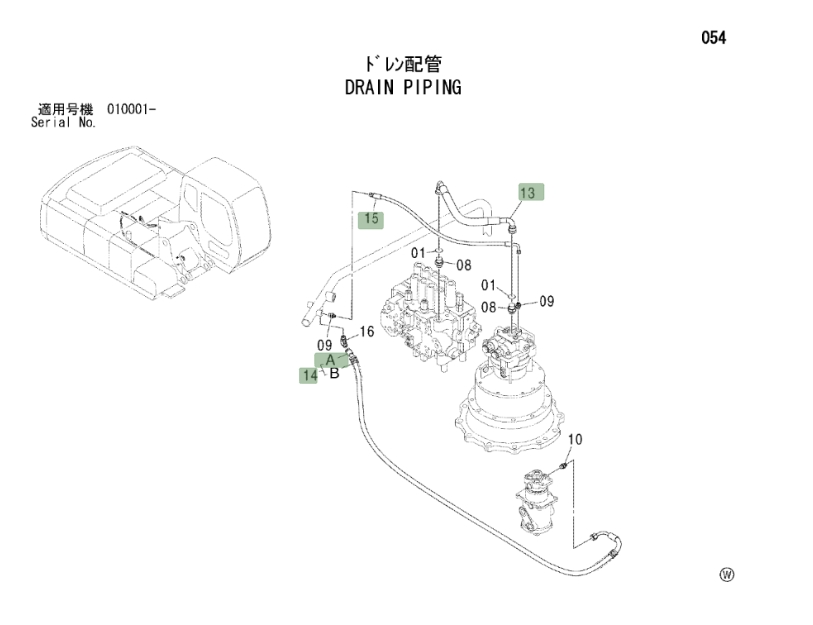

Installation diagram — Pipe No. 14

Locate Pipe No. 14 in the diagram, then confirm part number 9199986 before removing the hose.

Hitachi ZX240 installation diagram showing hydraulic hose 9199986 at Pipe No. 14 — **Hitachi ZX240**Part 9199986 · Pipe No. 14Open full-size diagram

Repair specifications

Part number: 9199986
Diagram pipe number: 14
Installation route: 回转接头~回油铁管(液压油箱)
Hose specification: DN13;2SN-08;27.5MPa
Finished length: 2,500 mm
Working pressure: 27.5 MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 90°美制内螺纹74°内锥
Quantity: 1
