Individual hose record
4721443 Hose Repair Specifications
Excavator · Hitachi · ZX130-5N · Control Lever
Finished length850 mm
Locate this hose

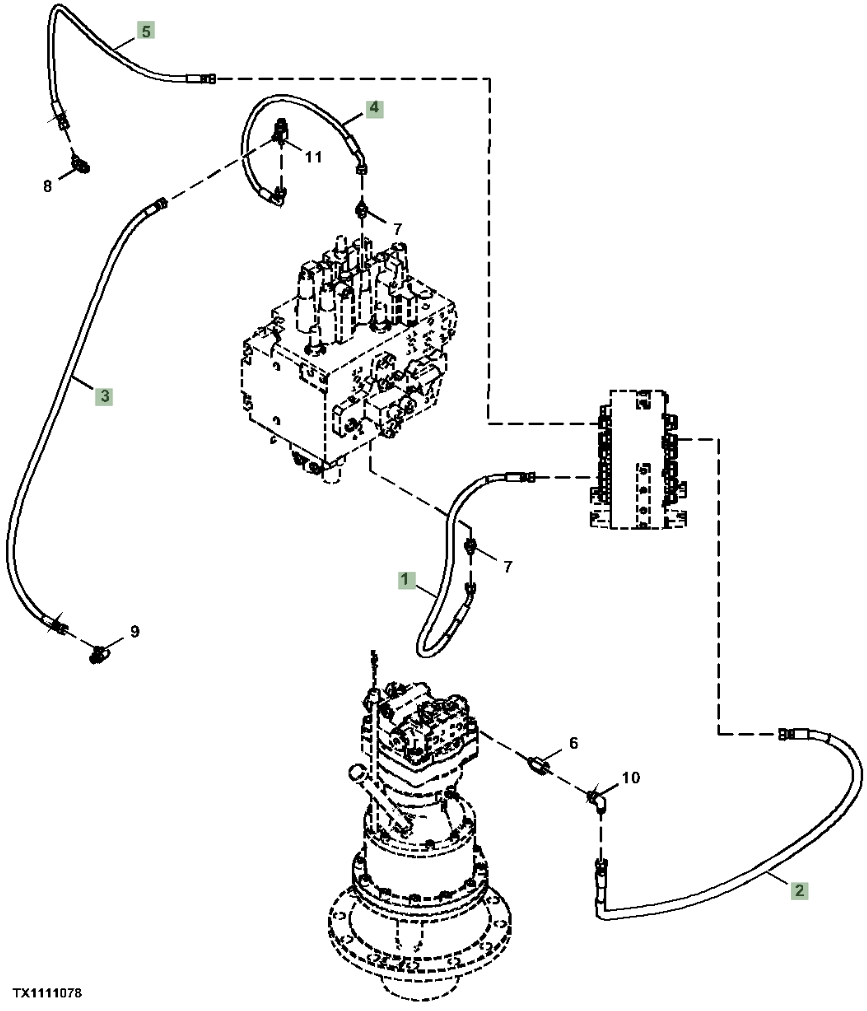

Installation diagram — Pipe No. 5
Locate Pipe No. 5 in the diagram, then confirm part number 4721443 before removing the hose.
Repair specifications
- Part number
- 4721443
- Diagram pipe number
- 5
- Installation route
- 中转接头~分配阀右
- Hose specification
- DN6;1SN-4;7Mpa
- Finished length
- 850 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
