Individual hose record
DS2054444 Hose Repair Specifications
Excavator · Doosan · B55W-2 · Hydraulic Pump
Finished length400 mm
Locate this hose

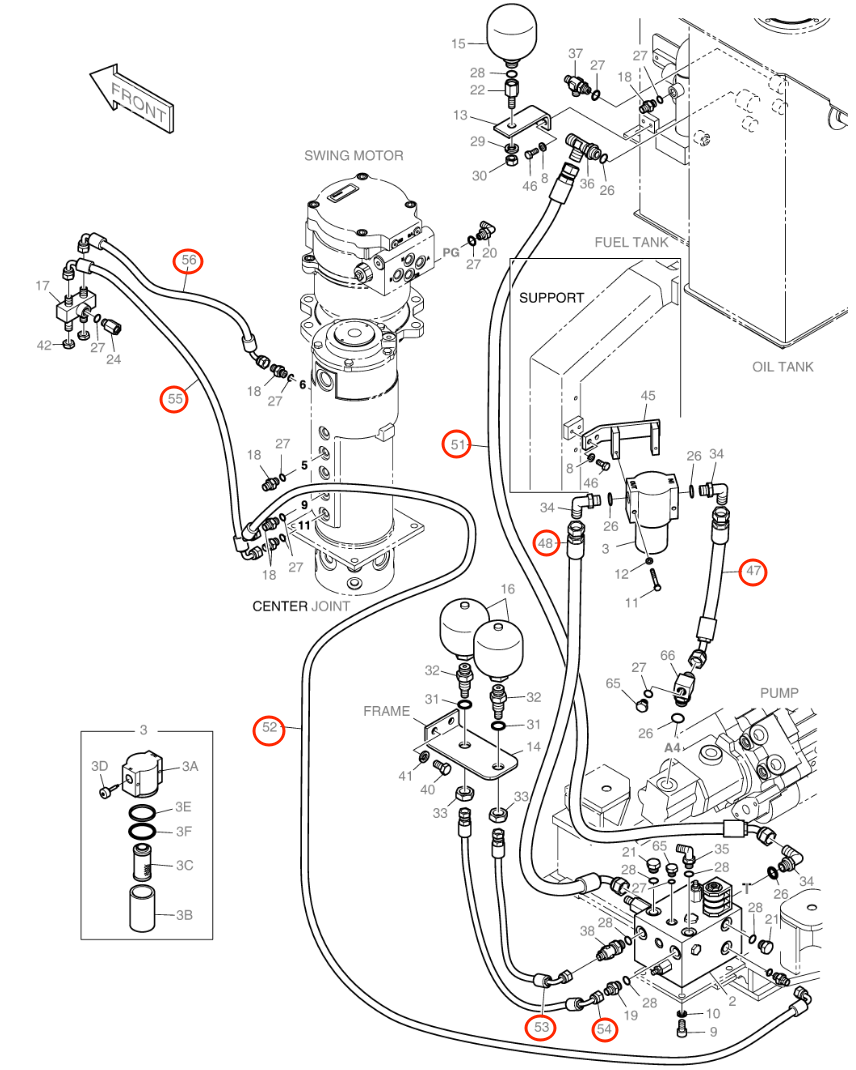

Installation diagram — Pipe No. 47
Locate Pipe No. 47 in the diagram, then confirm part number DS2054444 before removing the hose.
Repair specifications
- Part number
- DS2054444
- Diagram pipe number
- 47
- Installation route
- 齿轮泵~液压油滤清器(刹车)
- Hose specification
- DN13;2SN-08;27.5MPa
- Finished length
- 400 mm
- Working pressure
- 27.5 MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- 45° elbow, British female thread, 60° external cone seatOriginal Chinese: 45°英制内螺纹60°外锥
- Quantity
- 1
