Individual hose record
4262930 Hose Repair Specifications
Excavator · Hitachi · EX110-5 · Swivel Joint
Finished length1,700 mm
Locate this hose

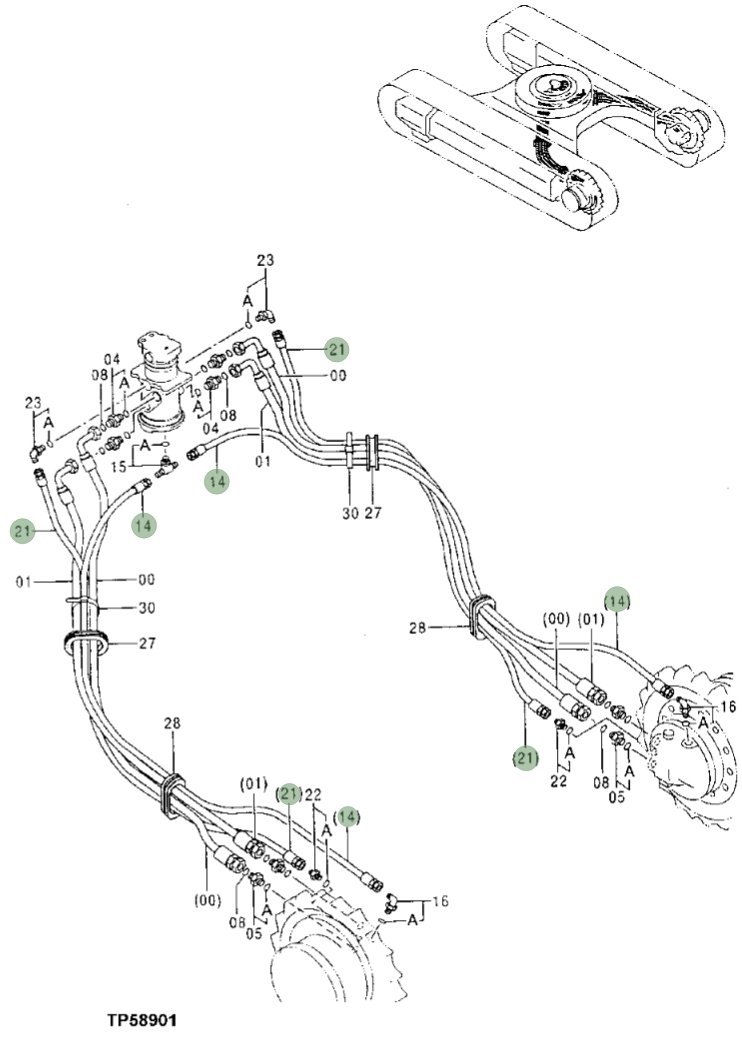

Installation diagram — Pipe No. 14
Locate Pipe No. 14 in the diagram, then confirm part number 4262930 before removing the hose.
Repair specifications
- Part number
- 4262930
- Diagram pipe number
- 14
- Installation route
- Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达
- Hose specification
- DN12;4层纤维层-8;3MPa
- Finished length
- 1,700 mm
- Working pressure
- 3 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 2
