- Length
- 1,550 mm
- Specification
- DN19;1SN-12;10.5MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Individual hose record
KSH1056 Hose Repair Specifications
Excavator · Case · CX380C LC · Engine Oil Lines
Finished length1,670 mm
Locate this hose

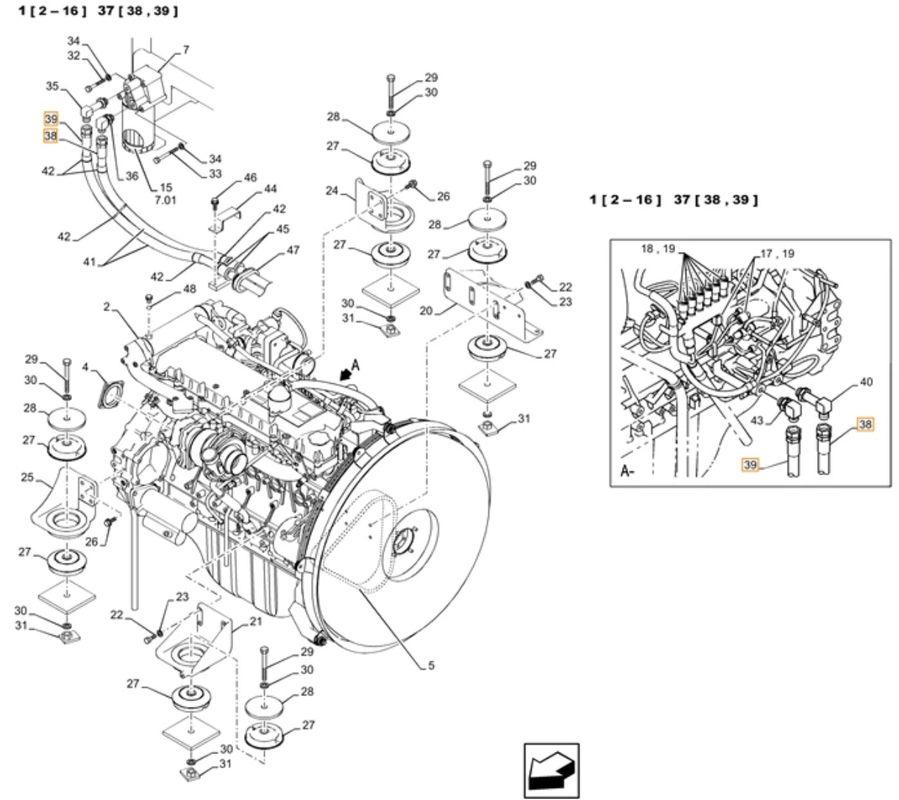

Installation diagram — Pipe No. 39
Locate Pipe No. 39 in the diagram, then confirm part number KSH1056 before removing the hose.
Repair specifications
- Part number
- KSH1056
- Diagram pipe number
- 39
- Installation route
- 机油管
- Hose specification
- DN19;1SN-12;10.5MPa
- Finished length
- 1,670 mm
- Working pressure
- 10.5 MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Quantity
- 1
