Individual hose record
KHJ13670 Hose Repair Specifications
Excavator · Case · CX300D NLC · Solenoid Valve
Finished length1,950 mm
Locate this hose

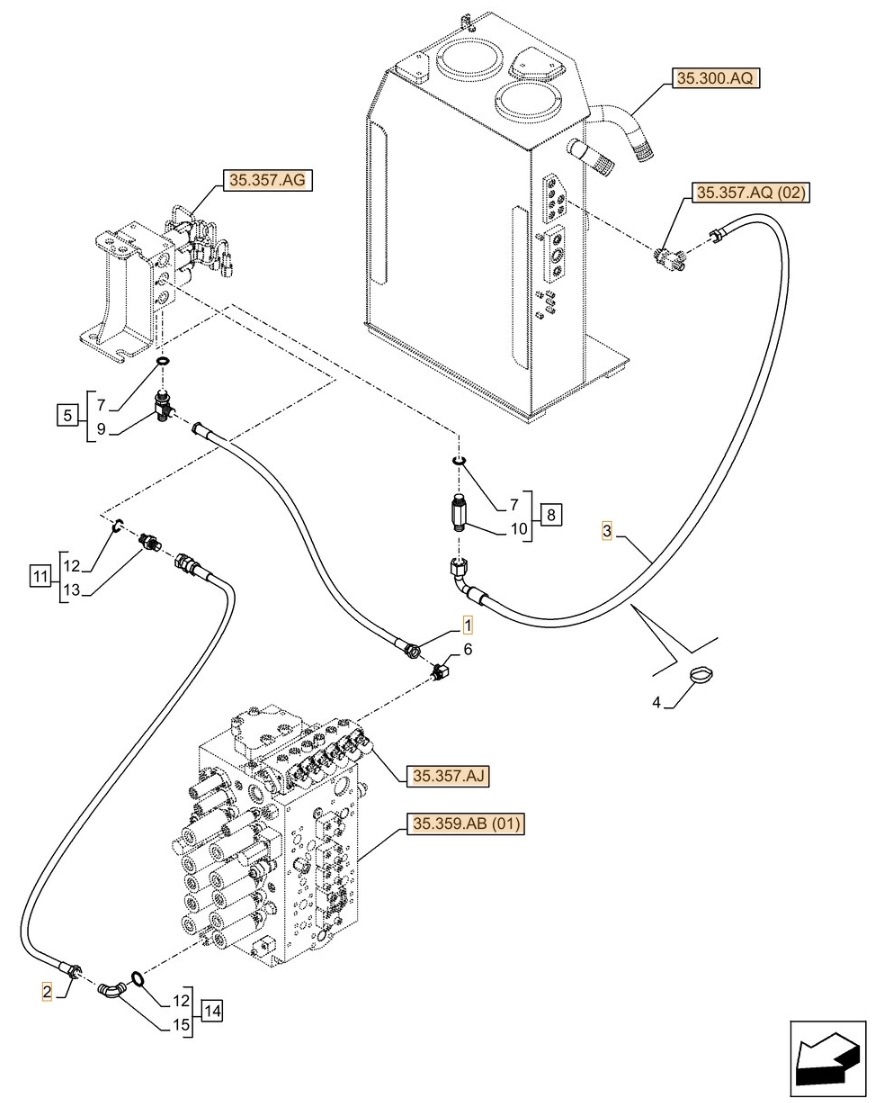

Installation diagram — Pipe No. 1
Locate Pipe No. 1 in the diagram, then confirm part number KHJ13670 before removing the hose.
Repair specifications
- Part number
- KHJ13670
- Diagram pipe number
- 1
- Installation route
- 电磁阀~电磁阀(分配阀)
- Hose specification
- DN10;1SN-06;18MPa
- Finished length
- 1,950 mm
- Working pressure
- 18 MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Quantity
- 1
