Individual hose record

DS2055643 Hose Repair Specifications

Excavator · Doosan · DX57W-5 · Attachments – Breaker

Finished length410 mm

Locate this hose

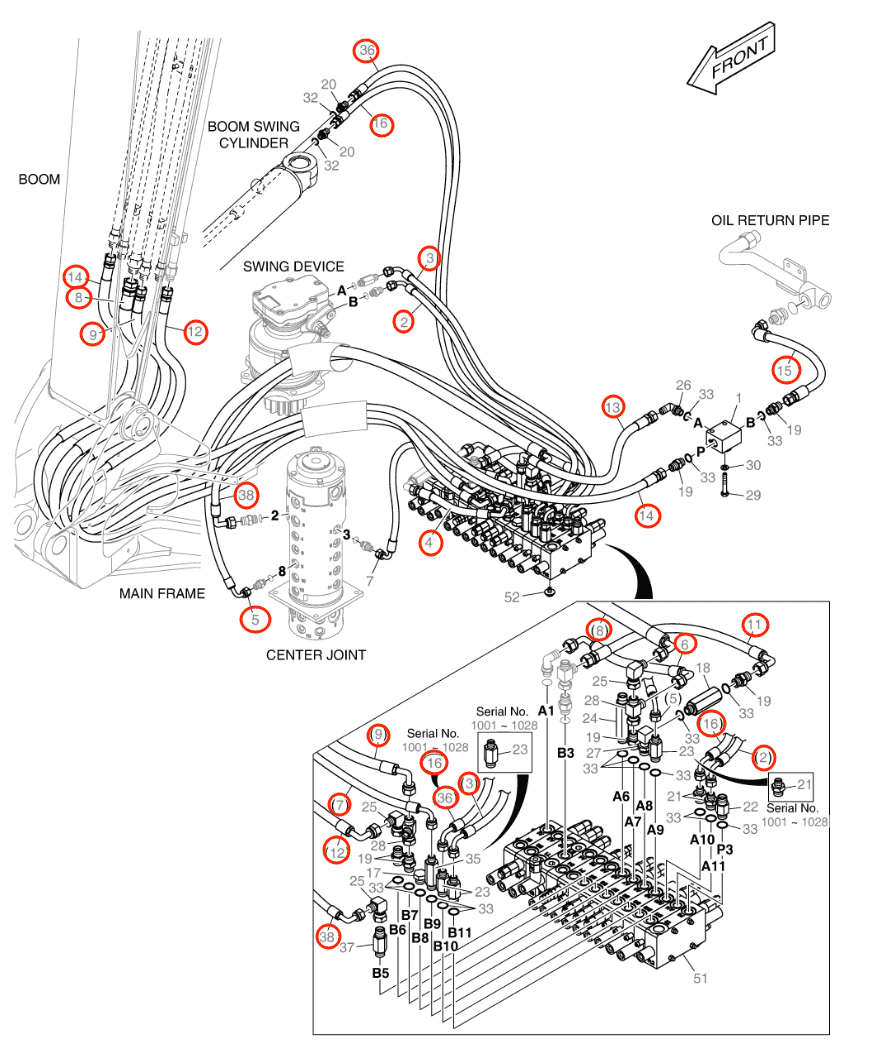

Installation diagram — Pipe No. 15

Locate Pipe No. 15 in the diagram, then confirm part number DS2055643 before removing the hose.

Part number: DS2055643
Diagram pipe number: 15
Installation route: 开关阀B口~回油铁管(液压油箱)
Hose specification: DN13;1SN-08;16MPa
Finished length: 410 mm
Working pressure: 16 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity: 1

Same system

Diagram Pipe No. 52

Installation route: 分配阀PB6口~电控液压动力转向阀B口

Length: 2,920 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

Diagram Pipe No. 12

Installation route: 分配阀PB10口~电控液压动力转向阀D口

Length: 2,650 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

Diagram Pipe No. 6

Installation route: 电磁阀T口~电控液压动力转向阀T口

Length: 460 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

Diagram Pipe No. 6

Installation route: 电磁阀T口~电控液压动力转向阀T口

Length: 490 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
