Individual hose record
730502000343 Hose Repair Specifications
Excavator · Sunward · SWE210 · Swivel Joint
Finished length1,550 mm
Locate this hose

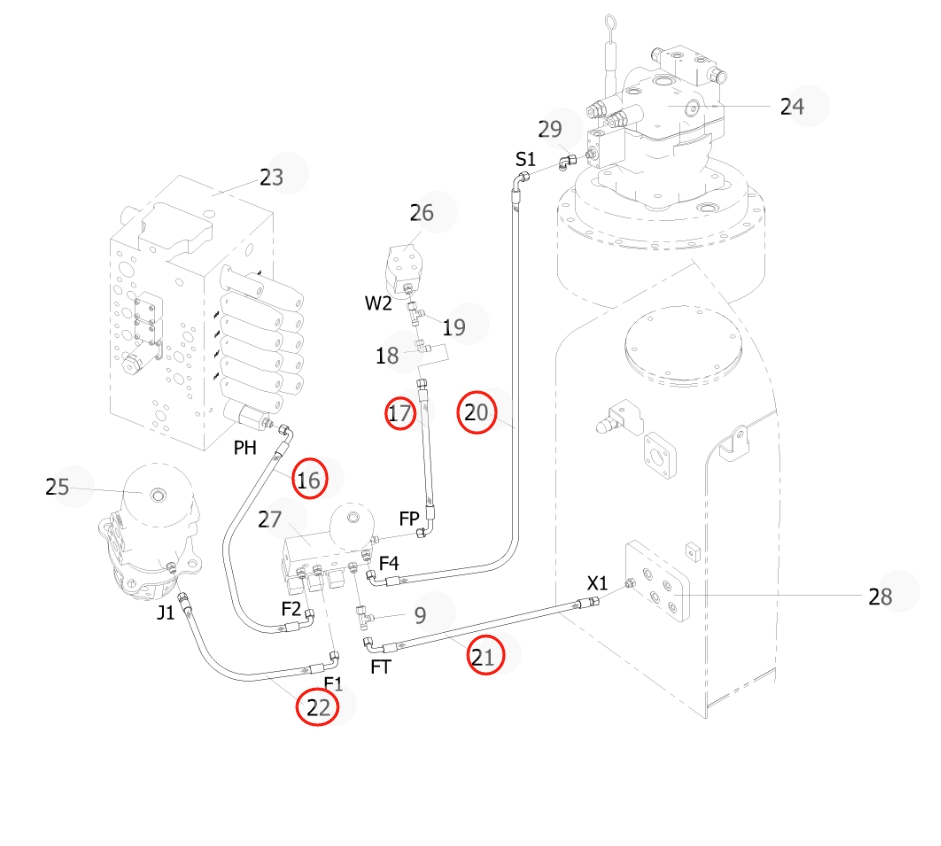

Installation diagram — Pipe No. 22
Locate Pipe No. 22 in the diagram, then confirm part number 730502000343 before removing the hose.
Repair specifications
- Part number
- 730502000343
- Diagram pipe number
- 22
- Installation route
- 回转接头J1~电磁阀(蓄能器)F1
- Hose specification
- DN6;1SN-04;22.5MPa
- Finished length
- 1,550 mm
- Working pressure
- 22.5 MPa
- Left fitting
- 公制内螺纹24°锥带O形圈-轻型
- Right fitting
- 90°公制内螺纹24°锥带O形圈-轻型
- Quantity
- 1
