Individual hose record
4366794 Hose Repair Specifications
Excavator · Hitachi · EX100M-5 · Attachments
Finished length380 mm
Locate this hose

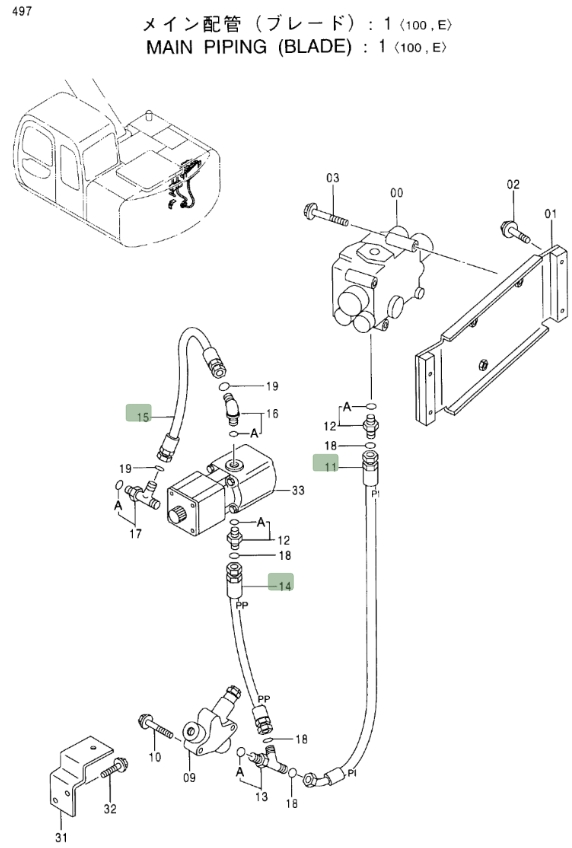

Installation diagram — Pipe No. 14
Locate Pipe No. 14 in the diagram, then confirm part number 4366794 before removing the hose.
Repair specifications
- Part number
- 4366794
- Diagram pipe number
- 14
- Installation route
- 先导泵~卸压阀(推土铲)
- Hose specification
- DN12;4SP-8;34.5Mpa
- Finished length
- 380 mm
- Working pressure
- 34.5 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 1
