Individual hose record
4305137 Hose Repair Specifications
Excavator · Hitachi · ZX470LC-6 · Swing Motor
Finished length2,600 mm
Locate this hose

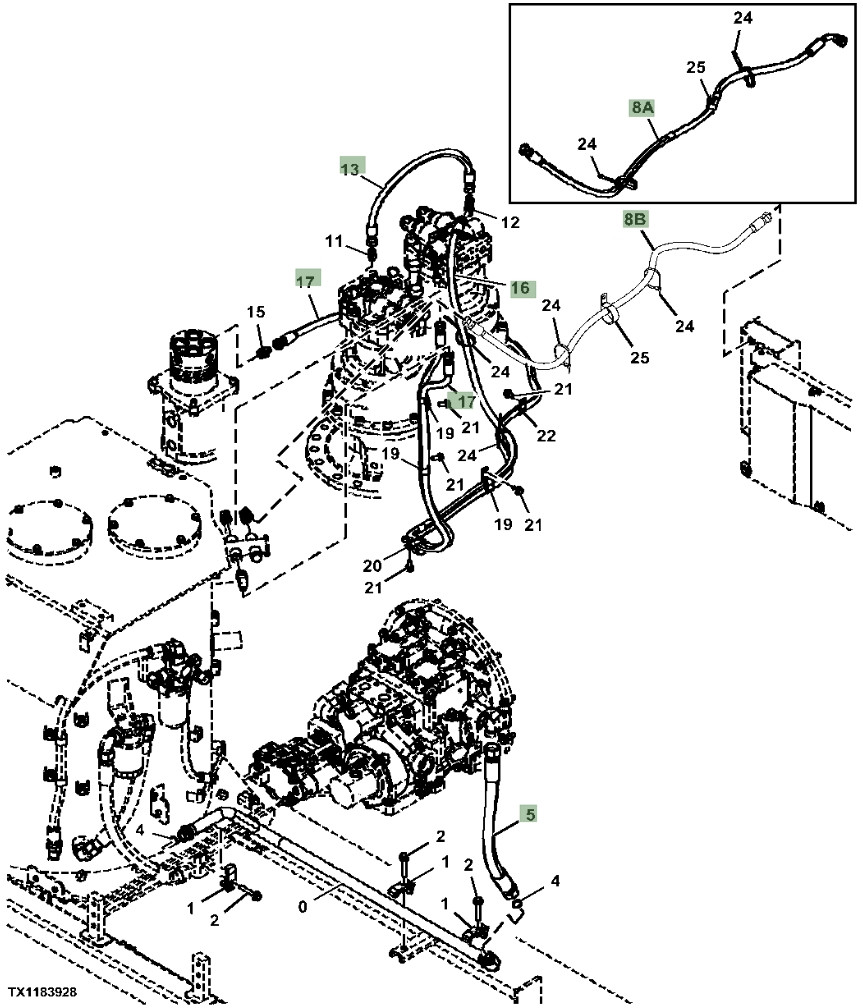

Installation diagram — Pipe No. 16
Locate Pipe No. 16 in the diagram, then confirm part number 4305137 before removing the hose.
Repair specifications
- Part number
- 4305137
- Diagram pipe number
- 16
- Installation route
- 回转马达(右)~接头(液压油箱)
- Hose specification
- DN13;1SN-08;16MPa
- Finished length
- 2,600 mm
- Working pressure
- 16 MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 美制内螺纹74°内锥
- Quantity
- 1
