Individual hose record
730503001905 Hose Repair Specifications
Excavator · Sunward · SWE18UF-3 · Hydraulic Pump
Finished length760 mm
Locate this hose

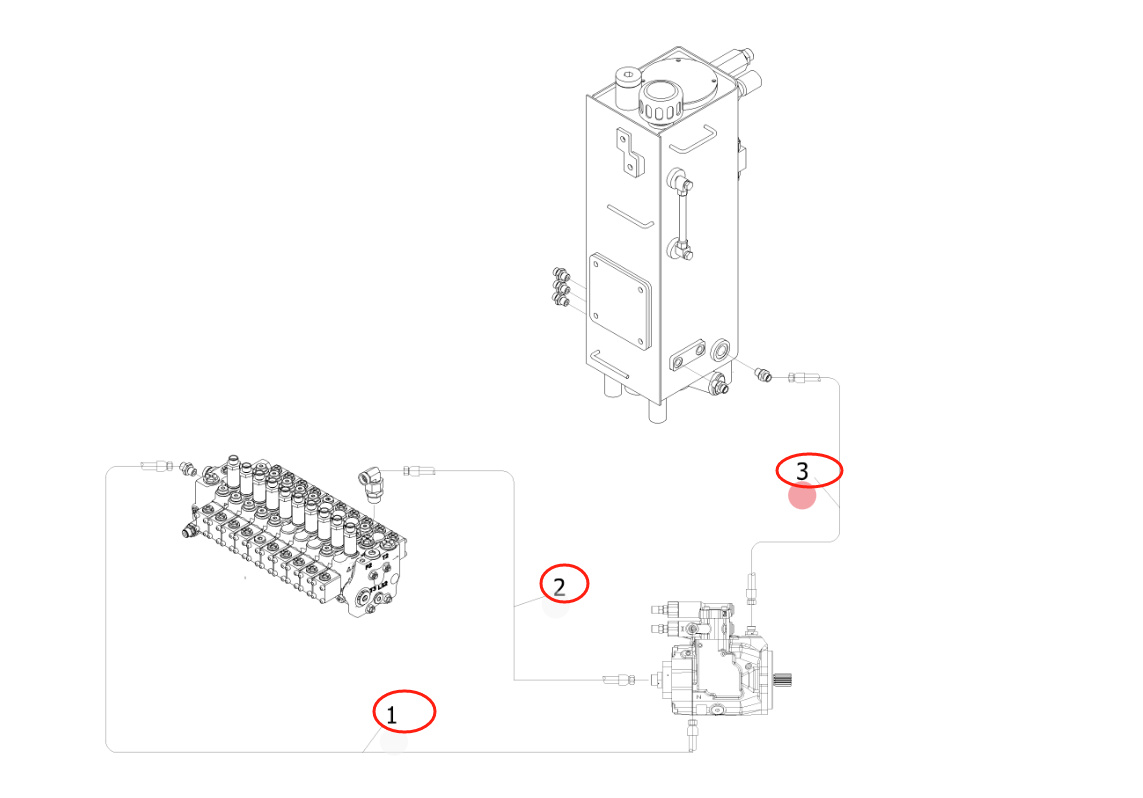

Installation diagram — Pipe No. 2
Locate Pipe No. 2 in the diagram, then confirm part number 730503001905 before removing the hose.
Repair specifications
- Part number
- 730503001905
- Diagram pipe number
- 2
- Installation route
- 液压泵~分配阀
- Hose specification
- DN12;2SN-08;24MPa
- Finished length
- 760 mm
- Working pressure
- 24 MPa
- Left fitting
- 90°公制内螺纹24°锥带O形圈-轻型
- Right fitting
- 90°公制内螺纹24°锥带O形圈-轻型
- Quantity
- 1
