Individual hose record

730502001036 Hose Repair Specifications

Excavator · Sunward · SWE365F · Pedal

Finished length3,650 mm

Locate this hose

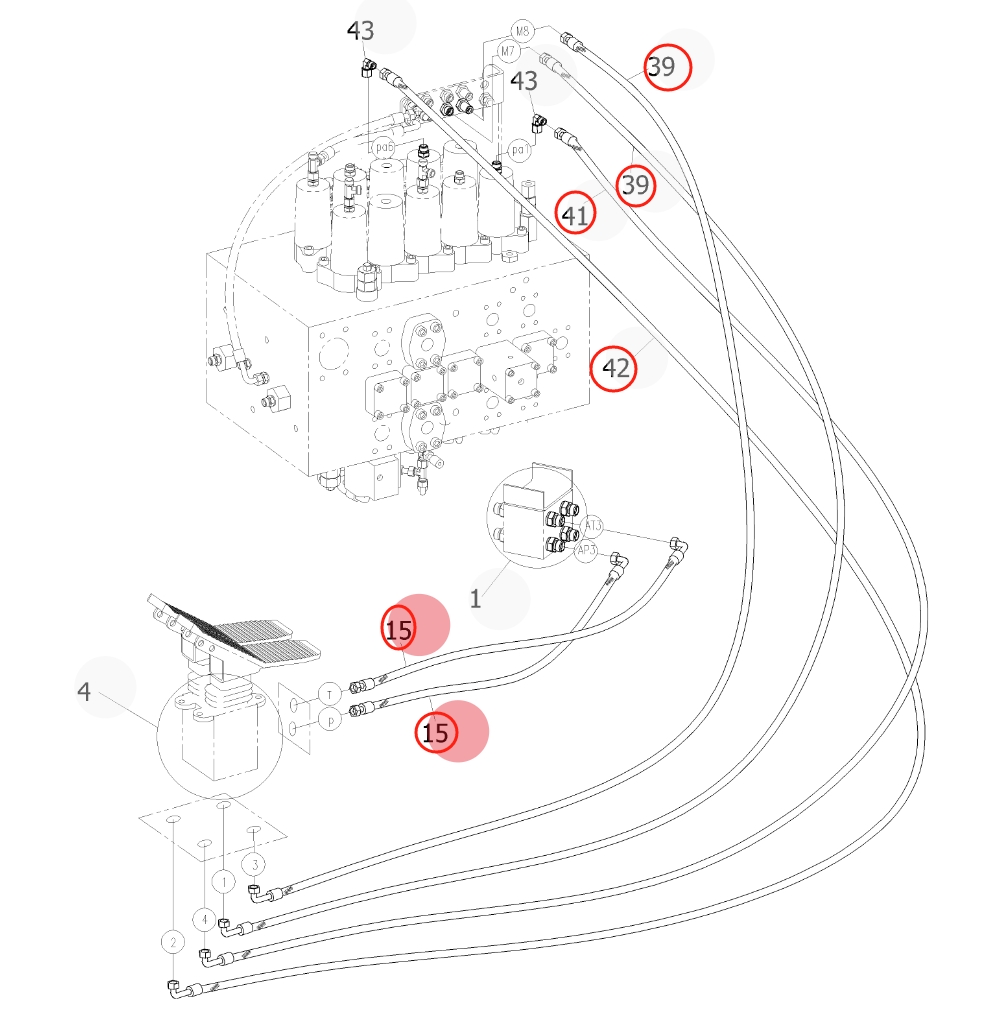

Installation diagram — Pipe No. 41

Locate Pipe No. 41 in the diagram, then confirm part number 730502001036 before removing the hose.

Sunward SWE365F installation diagram showing hydraulic hose 730502001036 at Pipe No. 41 — Sunward SWE365FPart 730502001036 · Pipe No. 41Open full-size diagram

Repair specifications

Part number: 730502001036
Diagram pipe number: 41
Installation route: 行走踏板~分配阀上PA1
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 3,650 mm
Working pressure: 22.5 MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 90°公制内螺纹24°锥带O形圈-轻型
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 42

730502008040

Installation route: 行走踏板~分配阀上PA6

Length: 3,750 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 90°公制内螺纹24°锥带O形圈-轻型

View full repair specifications

Diagram Pipe No. 15

730502000380

Installation route: 行走踏板~进回油阀

Length: 440 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 公制内螺纹24°锥带O形圈-轻型

View full repair specifications
