- Length
- 2,300 mm
- Specification
- DN10;1SN-6;7Mpa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
Individual hose record
4448756 Hose Repair Specifications
Excavator · Hitachi · ZX135US · Solenoid Valve
Finished length2,300 mm
Locate this hose

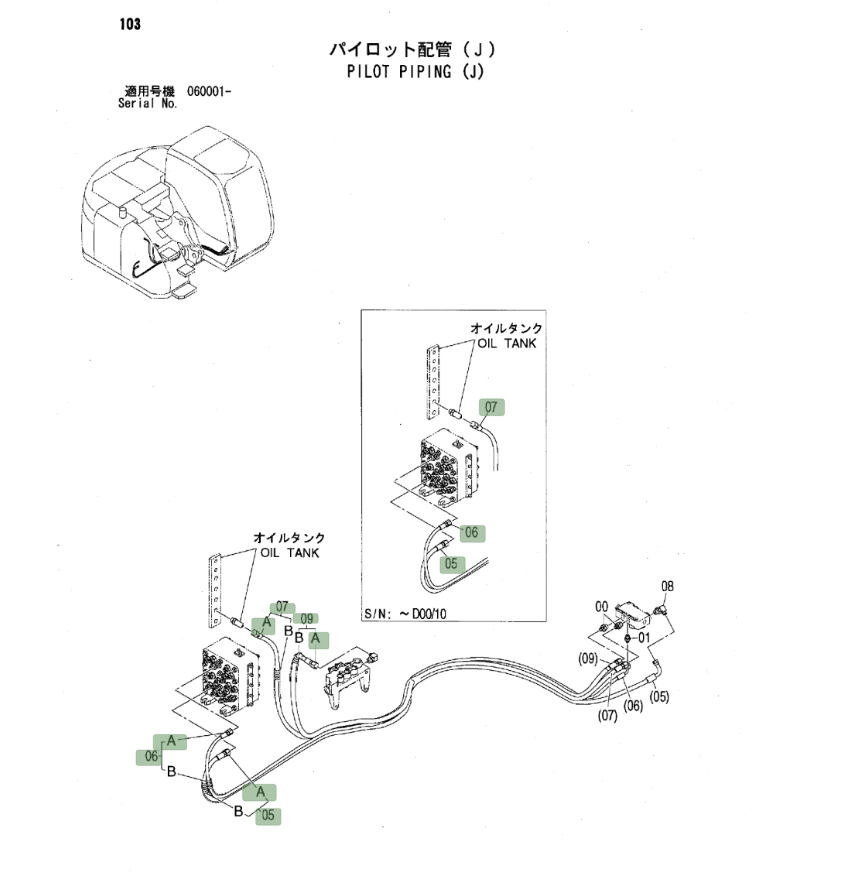

Installation diagram — Pipe No. 9A
Locate Pipe No. 9A in the diagram, then confirm part number 4448756 before removing the hose.
Repair specifications
- Part number
- 4448756
- Diagram pipe number
- 9A
- Installation route
- 电磁阀~进回油阀
- Hose specification
- DN10;1SN-6;7Mpa
- Finished length
- 2,300 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
