Individual hose record

2184-1036D365 Hose Repair Specifications

Excavator · Doosan · DX18 · Swivel Joint

Finished length320 mm

Locate this hose

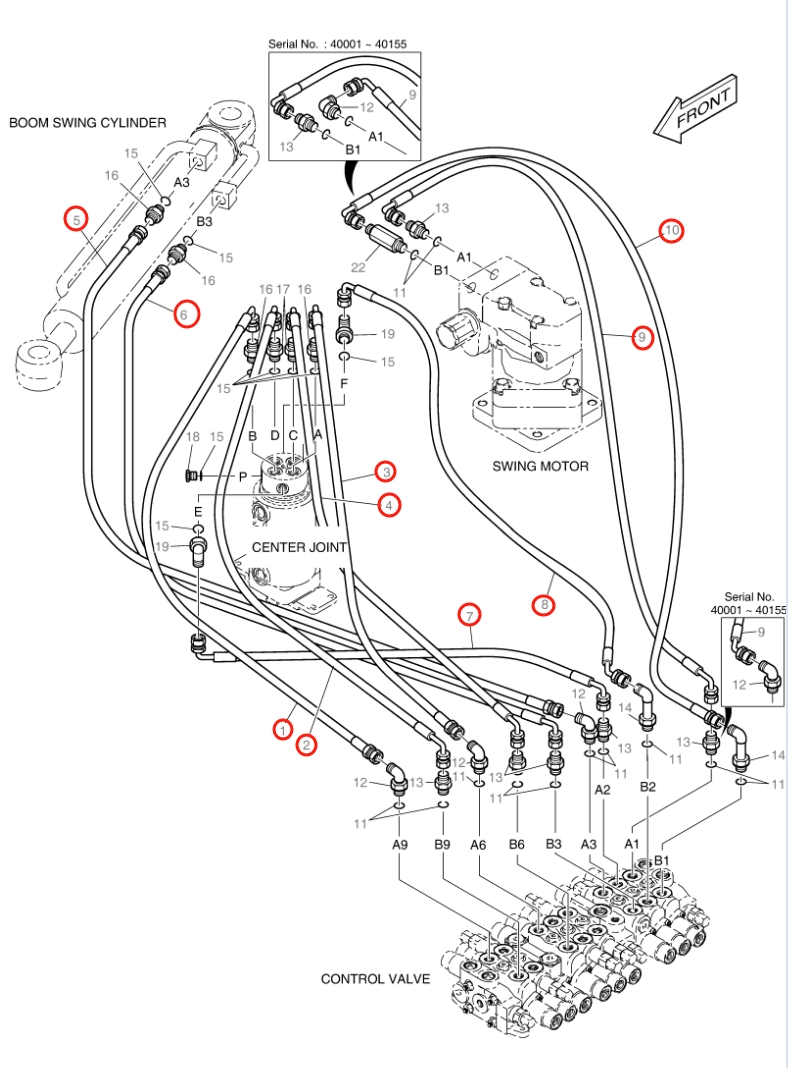

Installation diagram — Pipe No. 7

Locate Pipe No. 7 in the diagram, then confirm part number 2184-1036D365 before removing the hose.

Doosan DX18 installation diagram showing hydraulic hose 2184-1036D365 at Pipe No. 7 — **Doosan DX18**Part 2184-1036D365 · Pipe No. 7Open full-size diagram

Repair specifications

Part number: 2184-1036D365
Diagram pipe number: 7
Installation route: 回转接头E口~分配阀A2口
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 320 mm
Working pressure: 22.5 MPa
Left fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity: 1
