Individual hose record

4281537 Hose Repair Specifications

Excavator · Hitachi · EX200LC-2 · Pedal

Finished length1,050 mm

Locate this hose

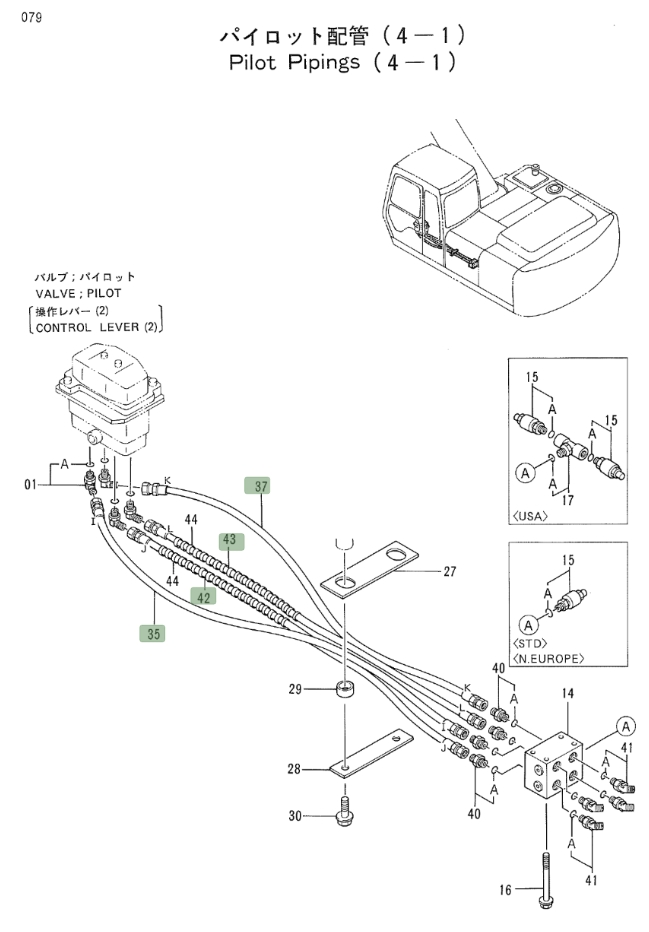

Installation diagram — Pipe No. 37

Locate Pipe No. 37 in the diagram, then confirm part number 4281537 before removing the hose.

Hitachi EX200LC-2 installation diagram showing hydraulic hose 4281537 at Pipe No. 37 — Hitachi EX200LC-2Part 4281537 · Pipe No. 37Open full-size diagram

Repair specifications

Part number: 4281537
Diagram pipe number: 37
Installation route: 行走踏板~过渡阀块(行走踏板)
Hose specification: DN10;1层纤维-6;14MPa
Finished length: 1,050 mm
Working pressure: 14 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥
Quantity: 1
