Individual hose record
4218085 Hose Repair Specifications
Excavator · Hitachi · EX550LC · Attachments
Finished length4,800 mm
Locate this hose

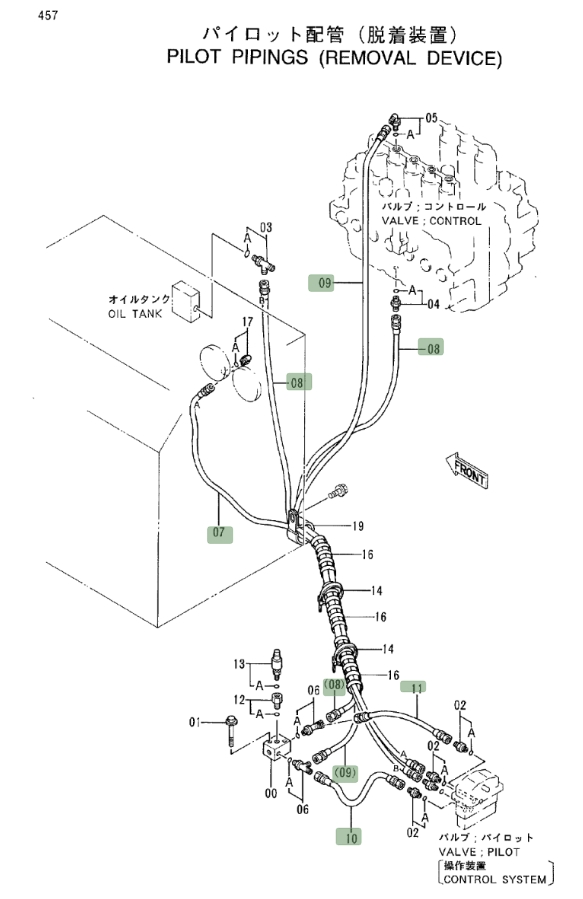

Installation diagram — Pipe No. 11
Locate Pipe No. 11 in the diagram, then confirm part number 4218085 before removing the hose.
Repair specifications
- Part number
- 4218085
- Diagram pipe number
- 11
- Installation route
- 配重自卸踏板~过渡阀块(配重自卸)
- Hose specification
- DN10;1SN-6;7Mpa
- Finished length
- 4,800 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
