Individual hose record
4252875 Hose Repair Specifications
Excavator · Hitachi · EX200LC-3 · Attachments – Lock Valve
Finished length500 mm
Locate this hose

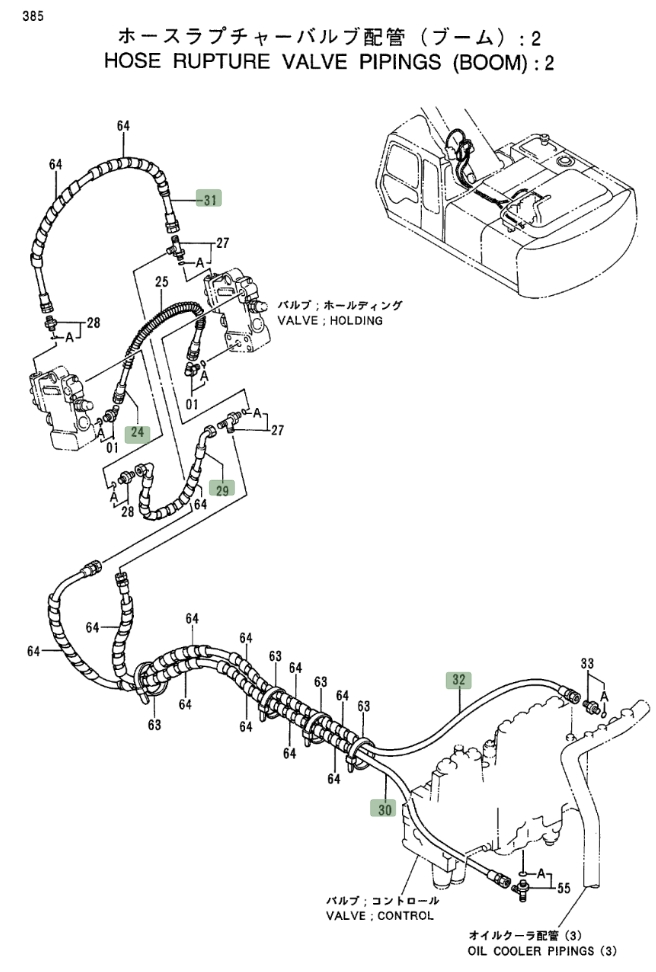

Installation diagram — Pipe No. 24
Locate Pipe No. 24 in the diagram, then confirm part number 4252875 before removing the hose.
Repair specifications
- Part number
- 4252875
- Diagram pipe number
- 24
- Installation route
- Left boom-cylinder lock valve → right boom-cylinder lock valveOriginal Chinese: 左大臂油缸锁止阀~右大臂油缸锁止阀
- Hose specification
- DN6;2SN-4;68.5MPa
- Finished length
- 500 mm
- Working pressure
- 68.5 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
Same system
Related Hoses
Diagram Pipe No. 31
4304403
Installation route: Left boom-cylinder lock valve → right boom-cylinder lock valveOriginal Chinese: 左大臂油缸锁止阀~右大臂油缸锁止阀
- Length
- 680 mm
- Specification
- DN10;1SN-6;7Mpa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Length
- 1,450 mm
- Specification
- DN10;1SN-6;7Mpa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Length
- 870 mm
- Specification
- DN19;4SP-12;34.5MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
