Individual hose record
730502001388 Hose Repair Specifications
Excavator · Sunward · SWE500ES · Control Lever
Finished length1,500 mm
Locate this hose

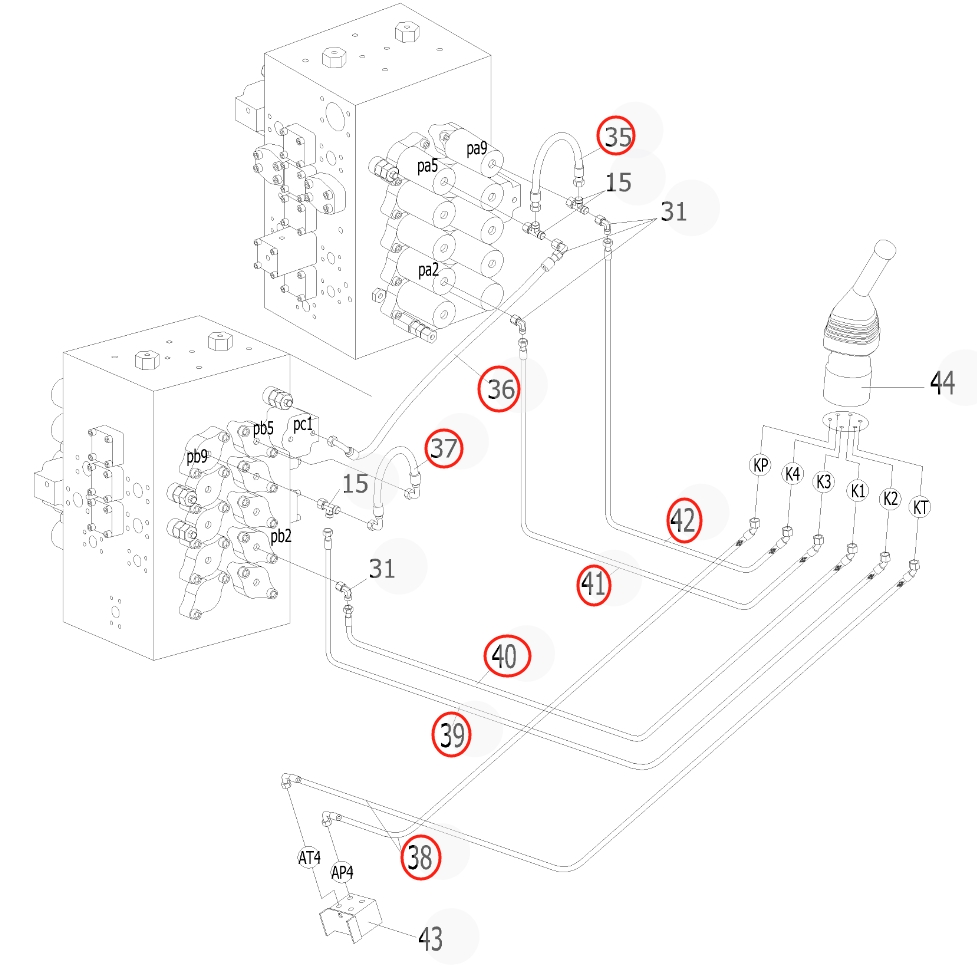

Installation diagram — Pipe No. 38
Locate Pipe No. 38 in the diagram, then confirm part number 730502001388 before removing the hose.
Repair specifications
- Part number
- 730502001388
- Diagram pipe number
- 38
- Installation route
- 左手柄KP~进回油阀AP4
- Hose specification
- DN8;1SN-05;22.5MPa
- Finished length
- 1,500 mm
- Working pressure
- 22.5 MPa
- Left fitting
- 公制内螺纹24°锥带O形圈-轻型
- Right fitting
- 90°公制内螺纹24°锥带O形圈-轻型
- Quantity
- 1
