Individual hose record
4715270 Hose Repair Specifications
Excavator · Hitachi · ZX670LC-6 · Control Lever
Finished length860 mm
Locate this hose

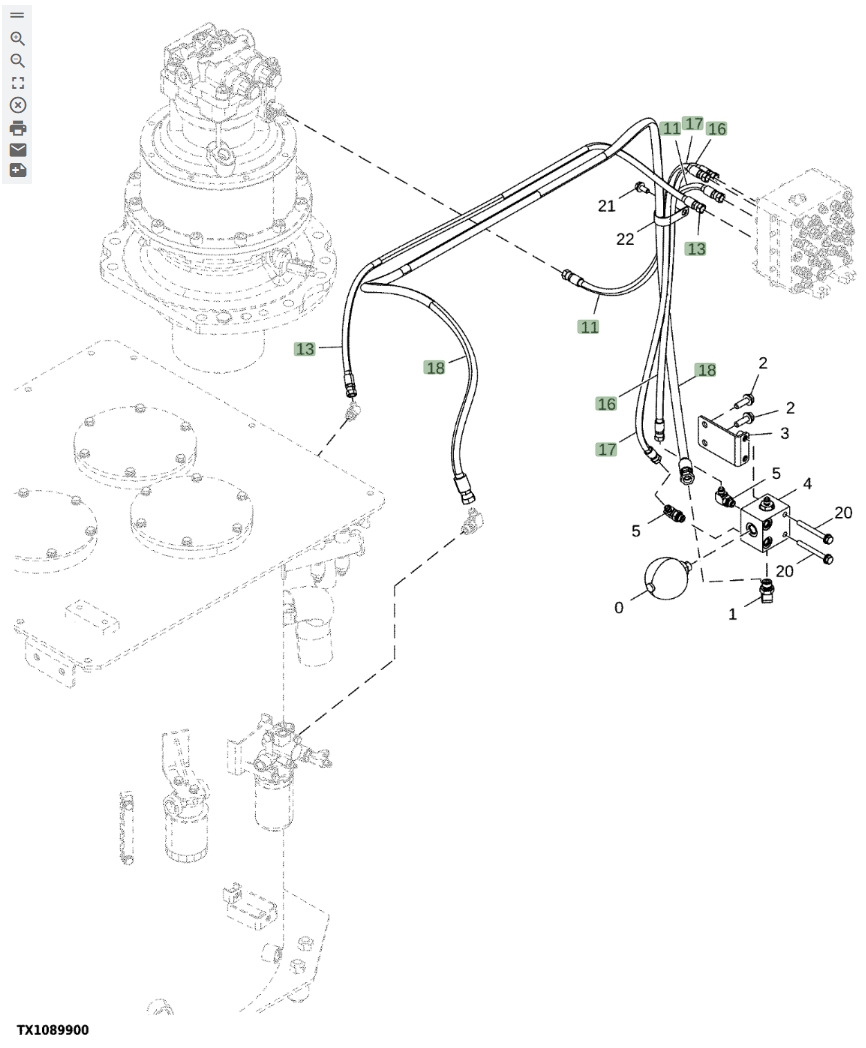

Installation diagram — Pipe No. 17
Locate Pipe No. 17 in the diagram, then confirm part number 4715270 before removing the hose.
Repair specifications
- Part number
- 4715270
- Diagram pipe number
- 17
- Installation route
- 中转接头~蓄能器
- Hose specification
- DN10;1SN-6;7Mpa
- Finished length
- 860 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
