Individual hose record

4313426 Hose Repair Specifications

Excavator · Hitachi · ZX380LC-6N · Hydraulic Pump

Finished length950 mm

Locate this hose

Installation diagram — Pipe No. 26

Locate Pipe No. 26 in the diagram, then confirm part number 4313426 before removing the hose.

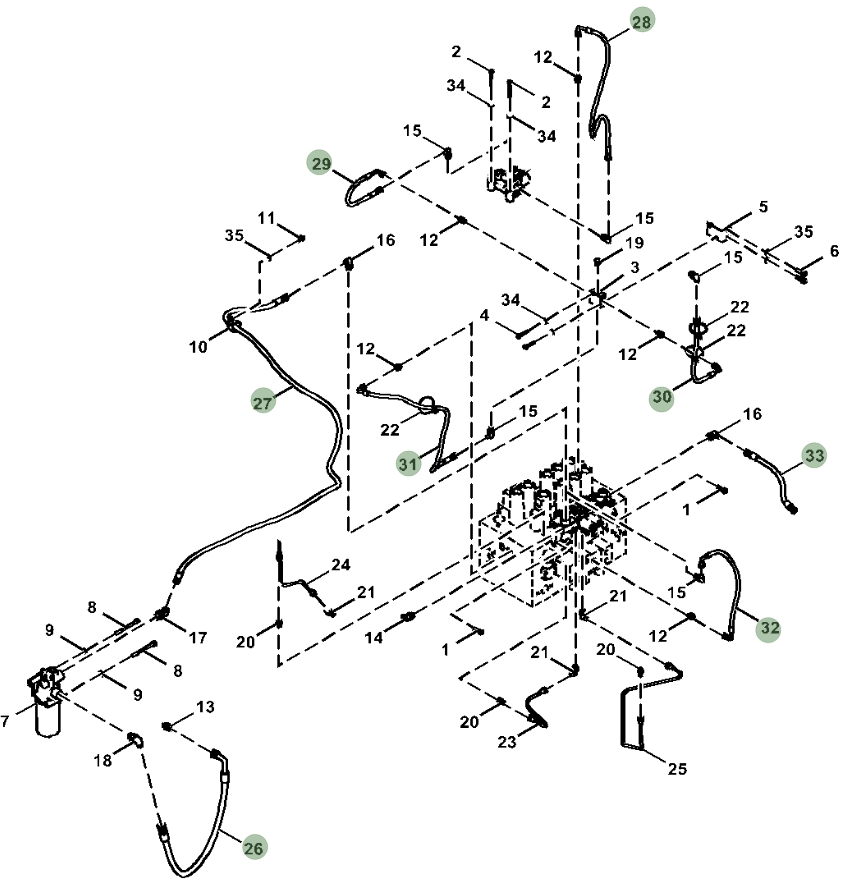

Hitachi ZX380LC-6N installation diagram showing hydraulic hose 4313426 at Pipe No. 26 — Hitachi ZX380LC-6NPart 4313426 · Pipe No. 26Open full-size diagram

Repair specifications

Part number: 4313426
Diagram pipe number: 26
Installation route: 液压泵~先导滤芯
Hose specification: DN12;1SN-8;7Mpa
Finished length: 950 mm
Working pressure: 7 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 19

FF528607

Installation route: 液压泵~电磁阀(液压泵)

Length: 600 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 45°美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 1

4197724

Installation route: 液压泵~吸油铁管

Length: 750 mm
Specification: DN19;2SN-12;21.5MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications
