Individual hose record
DS2093251 Hose Repair Specifications
Excavator · Doosan · DX55 · Control Valve
Finished length280 mm
Locate this hose

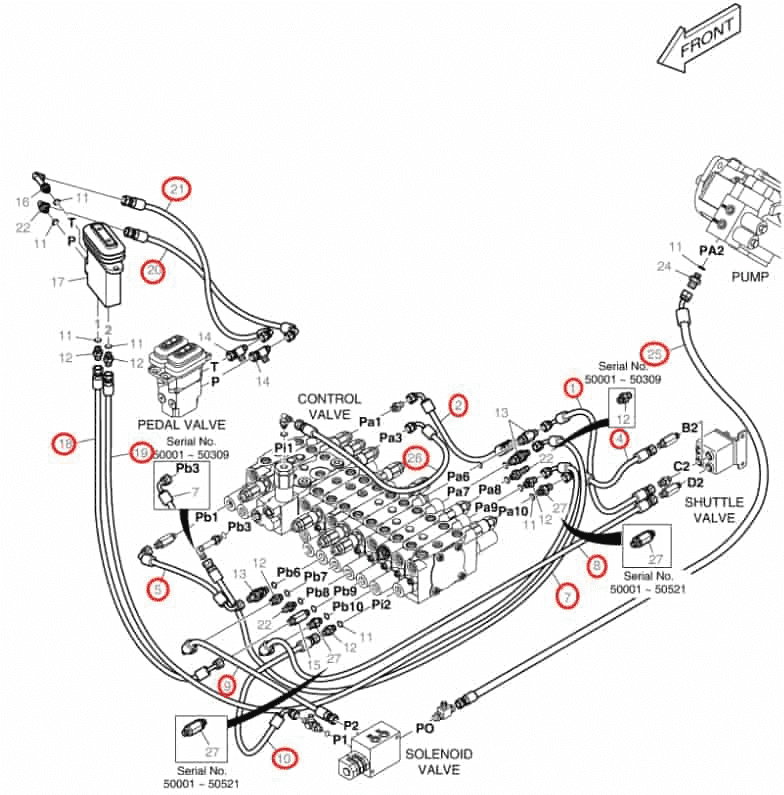

Installation diagram — Pipe No. 10
Locate Pipe No. 10 in the diagram, then confirm part number DS2093251 before removing the hose.
Repair specifications
- Part number
- DS2093251
- Diagram pipe number
- 10
- Installation route
- 分配阀PI2口~电磁阀P1口
- Hose specification
- DN6;1SN-04;22.5MPa
- Finished length
- 280 mm
- Working pressure
- 22.5 MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
- Quantity
- 1
