Individual hose record
4389845 Hose Repair Specifications
Excavator · Hitachi · EX750-5 · Grease Lines
Finished length750 mm
Locate this hose

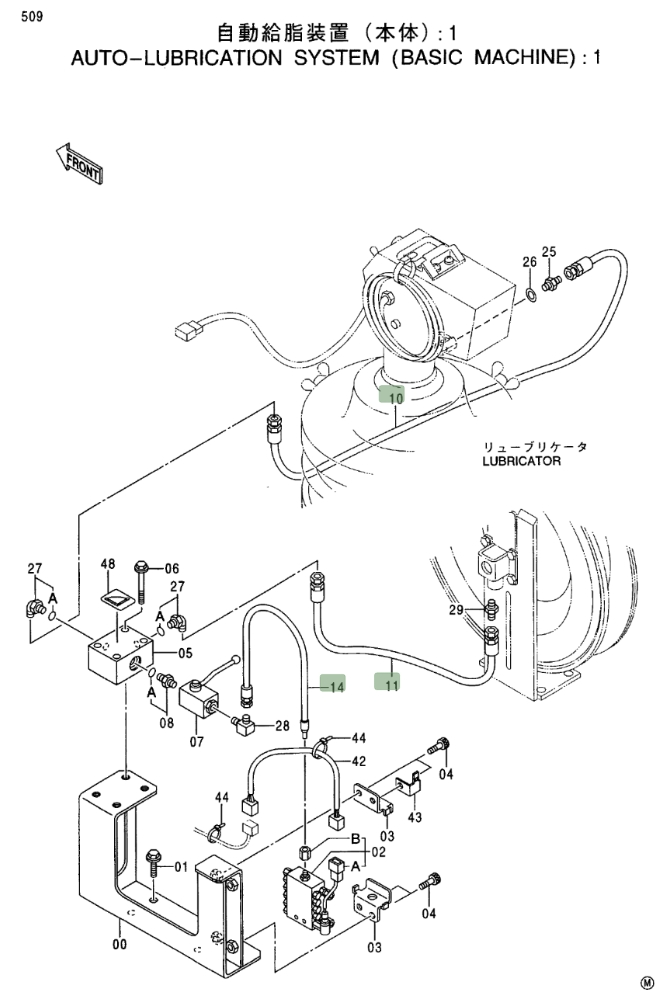

Installation diagram — Pipe No. 14
Locate Pipe No. 14 in the diagram, then confirm part number 4389845 before removing the hose.
Repair specifications
- Part number
- 4389845
- Diagram pipe number
- 14
- Installation route
- 分流阀(黄油)~过渡阀块(黄油)
- Hose specification
- DN6;1SN-4;10.5MPa
- Finished length
- 750 mm
- Working pressure
- 10.5 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 公制卡套式
- Quantity
- 1
