- Length
- 4,400 mm
- Specification
- DN10;1SN-06;18MPa
- Left fitting
- 90°美制内螺纹74°内锥
- Right fitting
- 90°美制内螺纹74°内锥
Individual hose record
9152745 Hose Repair Specifications
Excavator · Hitachi · EX200LC-5 · Supply and Return Valve
Finished length4,400 mm
Locate this hose

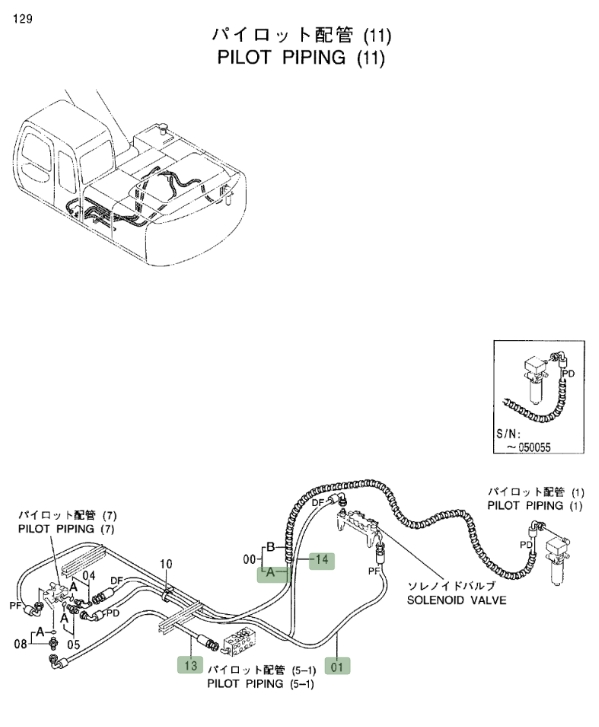

Installation diagram — Pipe No. 0
Locate Pipe No. 0 in the diagram, then confirm part number 9152745 before removing the hose.
Repair specifications
- Part number
- 9152745
- Diagram pipe number
- 0
- Installation route
- 进回油阀~先导滤芯
- Hose specification
- DN10;1SN-06;18MPa
- Finished length
- 4,400 mm
- Working pressure
- 18 MPa
- Left fitting
- 90°美制内螺纹74°内锥
- Right fitting
- 90°美制内螺纹74°内锥
- Quantity
- 1
