Individual hose record

161657A1 Hose Repair Specifications

Excavator · Case · CX240 · Control Lever

Finished length1,600 mm

Locate this hose

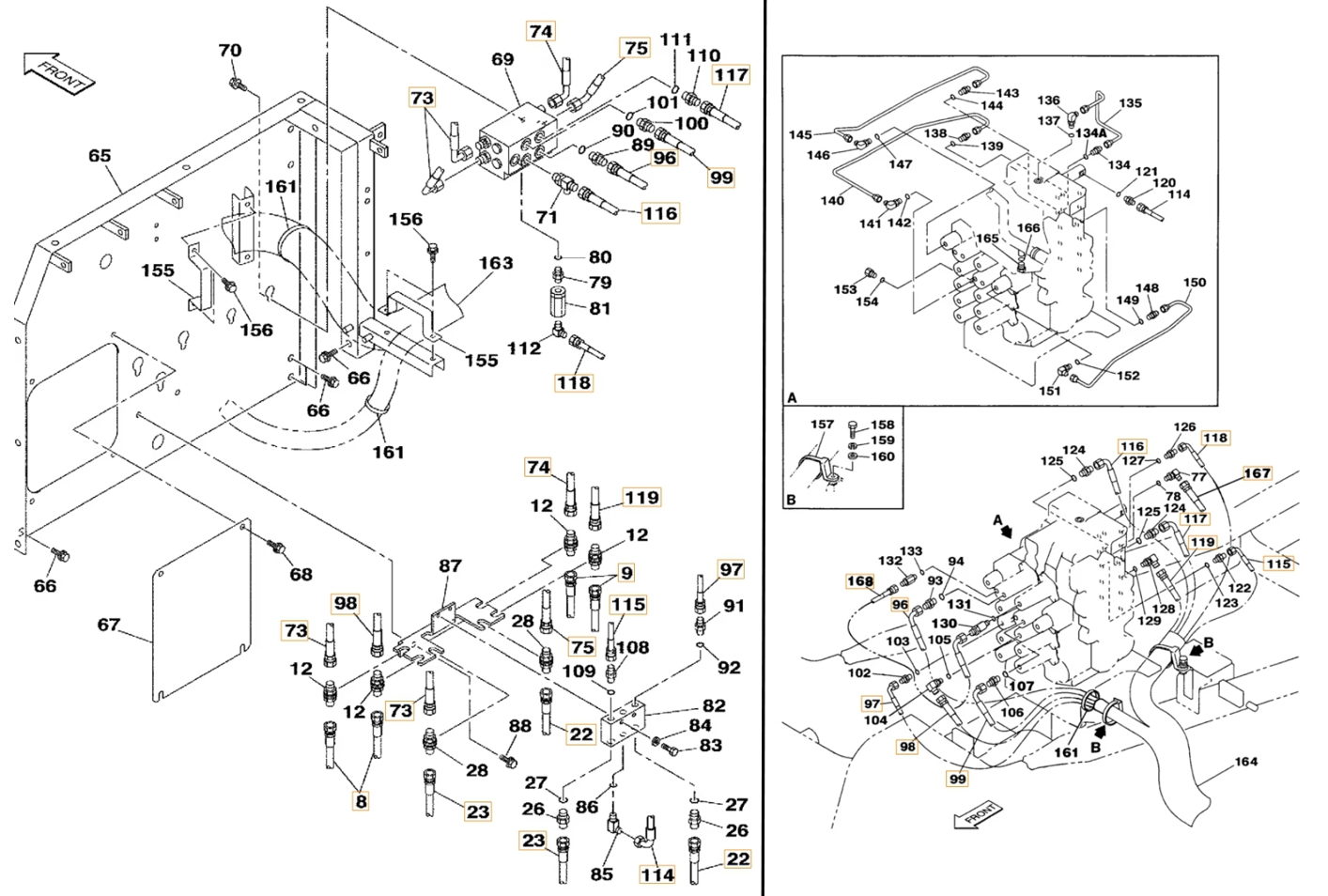

Installation diagram — Pipe No. 115

Locate Pipe No. 115 in the diagram, then confirm part number 161657A1 before removing the hose.

Case CX240 installation diagram showing hydraulic hose 161657A1 at Pipe No. 115 — **Case CX240**Part 161657A1 · Pipe No. 115Open full-size diagram

Repair specifications

Part number: 161657A1
Diagram pipe number: 115
Installation route: 中转接头~分配阀后右
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 1,600 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 10

159214A1

Installation route: 右手柄~进回油阀

Length: 1,200 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 9

168025A1

Installation route: 右手柄~中转接头

Length: 2,150 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 22

KHJ1345

Installation route: 左手柄~中转接头

Length: 2,150 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 162A

KHJ1345

Installation route: 缓冲阀(手柄)~接头(过渡阀块(大臂油缸锁止阀))

Length: 2,150 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 11

159213A1

Installation route: 右手柄~进回油阀

Length: 1,150 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 119

157963A1

Installation route: 中转接头~分配阀后左

Length: 1,400 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 114

162555A1

Installation route: 中转接头~分配阀后左

Length: 1,800 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 84

159224A1

Installation route: 缓冲阀(手柄)~模式转换阀

Length: 900 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications
