Individual hose record

4442133 Hose Repair Specifications

Excavator · Hitachi · ZX210F-3 · Attachments

Finished length600 mm

Locate this hose

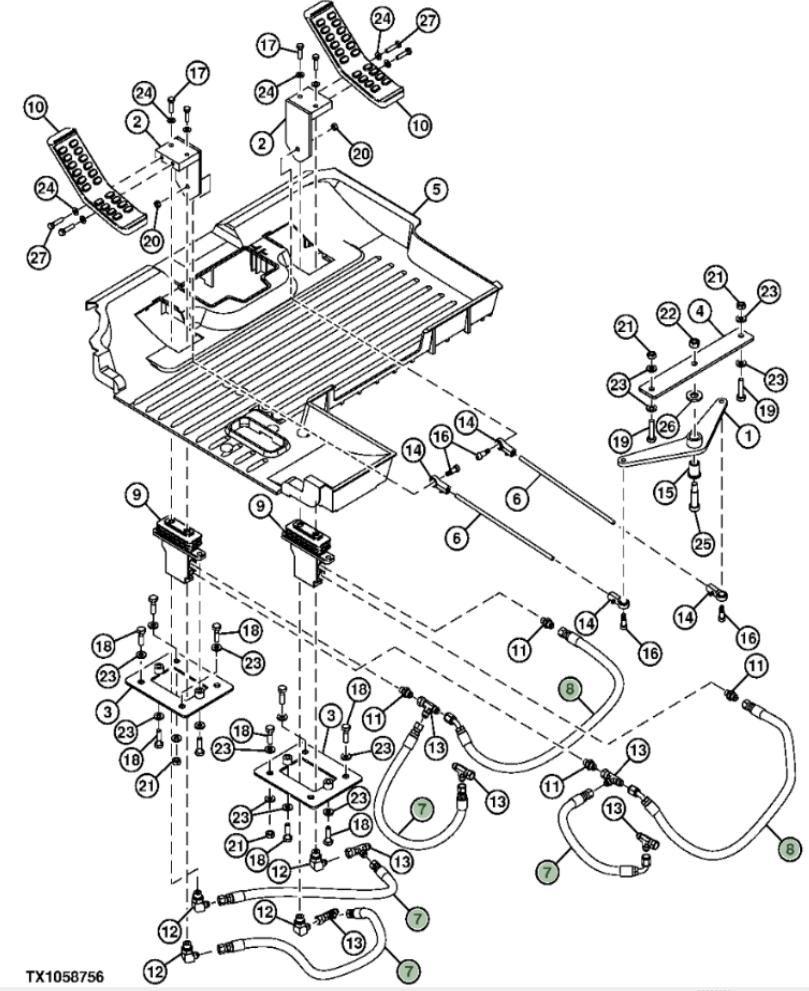

Installation diagram — Pipe No. 7

Locate Pipe No. 7 in the diagram, then confirm part number 4442133 before removing the hose.

Hitachi ZX210F-3 installation diagram showing hydraulic hose 4442133 at Pipe No. 7 — Hitachi ZX210F-3Part 4442133 · Pipe No. 7Open full-size diagram

Repair specifications

Part number: 4442133
Diagram pipe number: 7
Installation route: 左踏板~行走踏板
Hose specification: DN10;1SN-06;18MPa
Finished length: 600 mm
Working pressure: 18 MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥
Quantity: 4

Same system

Related Hoses

Diagram Pipe No. 7

4653610

Installation route: 左踏板~行走踏板

Length: 600 mm
Specification: DN10;1SN-6;18MPa
Left fitting: 美制内螺纹74°内锥双六角
Right fitting: 美制内螺纹74°内锥双六角

View full repair specifications

Diagram Pipe No. 8

4450022

Installation route: 左踏板~右踏板

Length: 770 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 45°美制内螺纹37°内锥

View full repair specifications
