Individual hose record
4675799 Hose Repair Specifications
Excavator · Hitachi · ZX470-5A · Control Lever
Finished length1,250 mm
Locate this hose

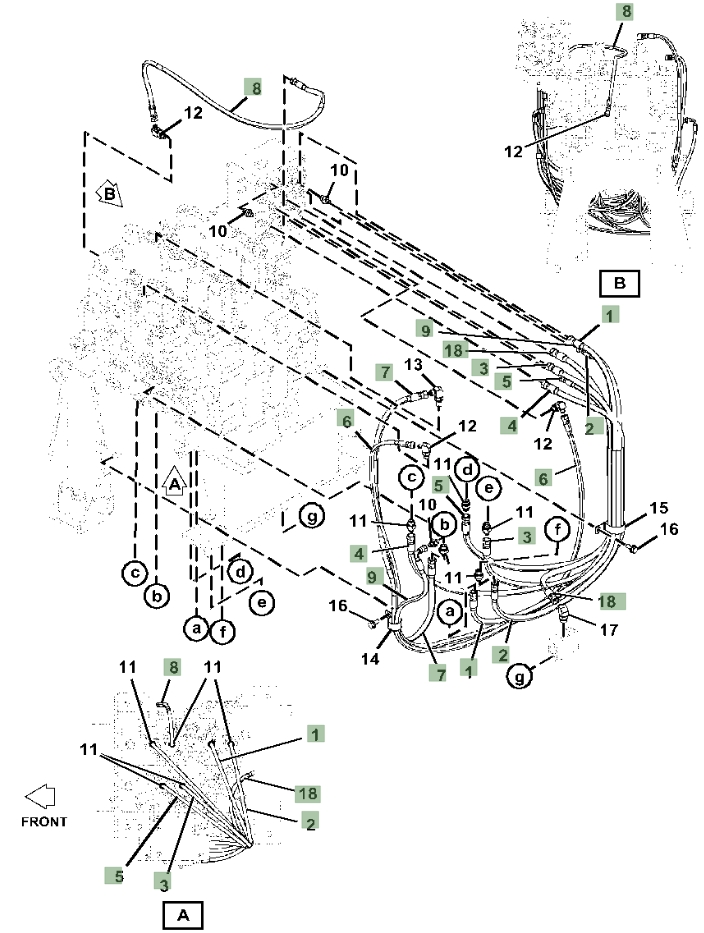

Installation diagram — Pipe No. 2
Locate Pipe No. 2 in the diagram, then confirm part number 4675799 before removing the hose.
Repair specifications
- Part number
- 4675799
- Diagram pipe number
- 2
- Installation route
- 中转接头~分配阀下
- Hose specification
- DN10;1SN-6;7Mpa
- Finished length
- 1,250 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
