- Length
- 700 mm
- Specification
- DN6;2层纤维-4;14MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 90°美制内螺纹37°内锥
Individual hose record
4204190 Hose Repair Specifications
Excavator · Hitachi · EX300LC · Control Valve
Finished length550 mm
Locate this hose

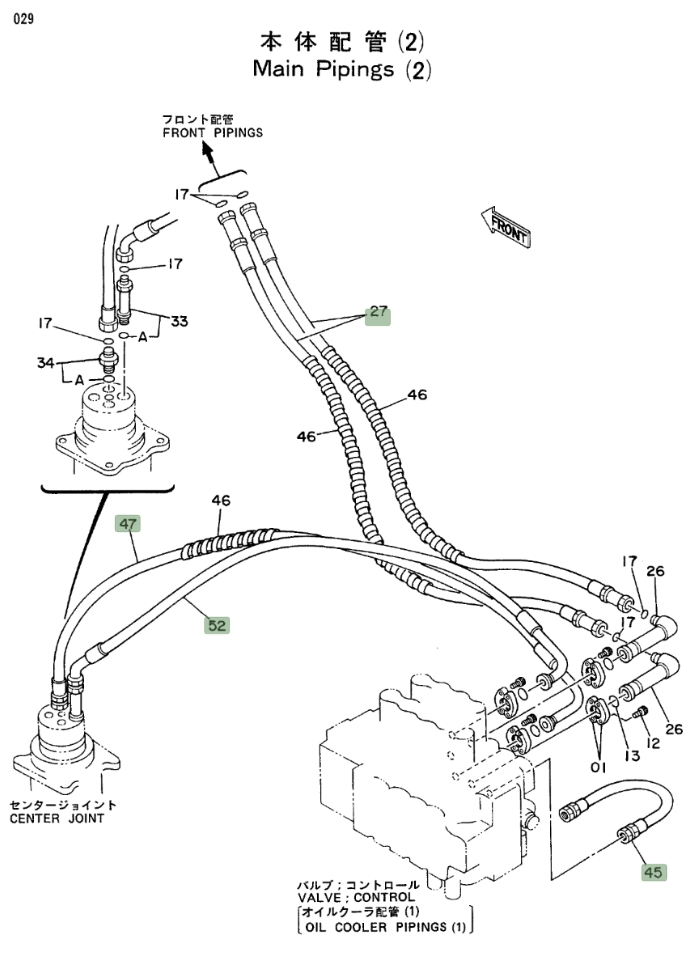

Installation diagram — Pipe No. 45
Locate Pipe No. 45 in the diagram, then confirm part number 4204190 before removing the hose.
Repair specifications
- Part number
- 4204190
- Diagram pipe number
- 45
- Installation route
- 分配阀右~分配阀右
- Hose specification
- DN10;2SN-6;27.5MPa
- Finished length
- 550 mm
- Working pressure
- 27.5 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
