Individual hose record

KHJ2194 Hose Repair Specifications

Excavator · Case · CX370D LC · Control Valve

Finished length650 mm

Locate this hose

Installation diagram — Pipe No. 15

Locate Pipe No. 15 in the diagram, then confirm part number KHJ2194 before removing the hose.

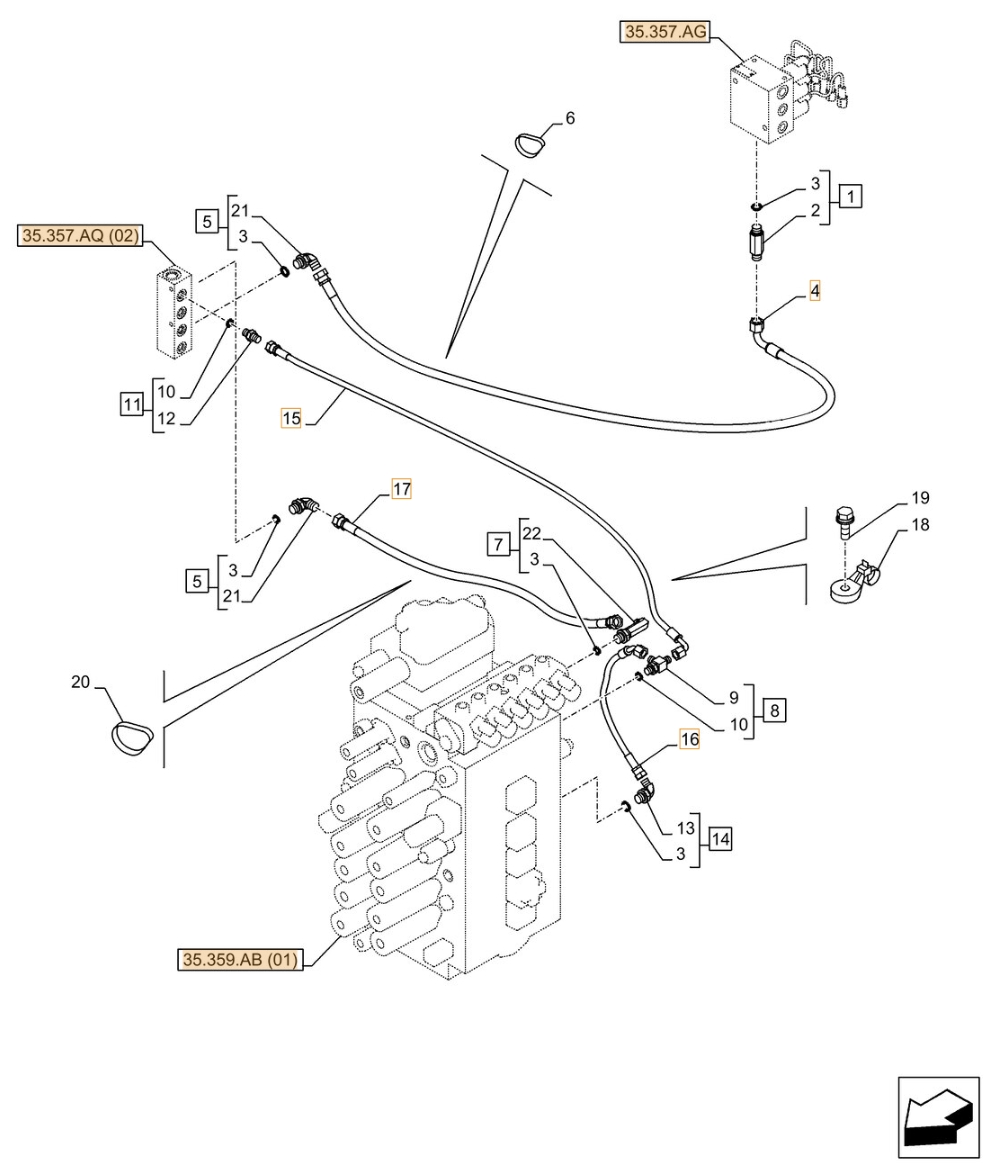

Case CX370D LC installation diagram showing hydraulic hose KHJ2194 at Pipe No. 15 — **Case CX370D LC**Part KHJ2194 · Pipe No. 15Open full-size diagram

Repair specifications

Part number: KHJ2194
Diagram pipe number: 15
Installation route: 分配阀后左~液压油箱过渡阀块
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 650 mm
Working pressure: 22.5 MPa
Left fitting: 90°英制内螺纹60°内锥
Right fitting: 英制内螺纹60°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 2

KHJ2394

Installation route: 分配阀前右~电磁阀(分配阀)

Length: 550 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 5

KHJ2047

Installation route: 分配阀前左~电磁阀(分配阀)

Length: 650 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 15

KHJ2163

Installation route: 分配阀后左~液压油箱过渡阀块

Length: 620 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 10

KHJ2342

Installation route: 分配阀前左~分配阀前右

Length: 380 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 7

KHJ2190

Installation route: 分配阀左~电磁阀(分配阀)

Length: 420 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 16

KHJ16200

Installation route: 分配阀后左~电磁阀(分配阀)

Length: 400 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 45° elbow, British female thread, 60° external cone seatOriginal Chinese: 45°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 1

KHJ14910

Installation route: 分配阀前右~电磁阀(分配阀)

Length: 800 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 45° elbow, British female thread, 60° external cone seatOriginal Chinese: 45°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 8

KHJ2239

Installation route: 分配阀前右~液压油箱过渡阀块

Length: 520 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications
