Individual hose record

159217A1 Hose Repair Specifications

Excavator · Case · CX220B · Control Lever

Finished length1,850 mm

Locate this hose

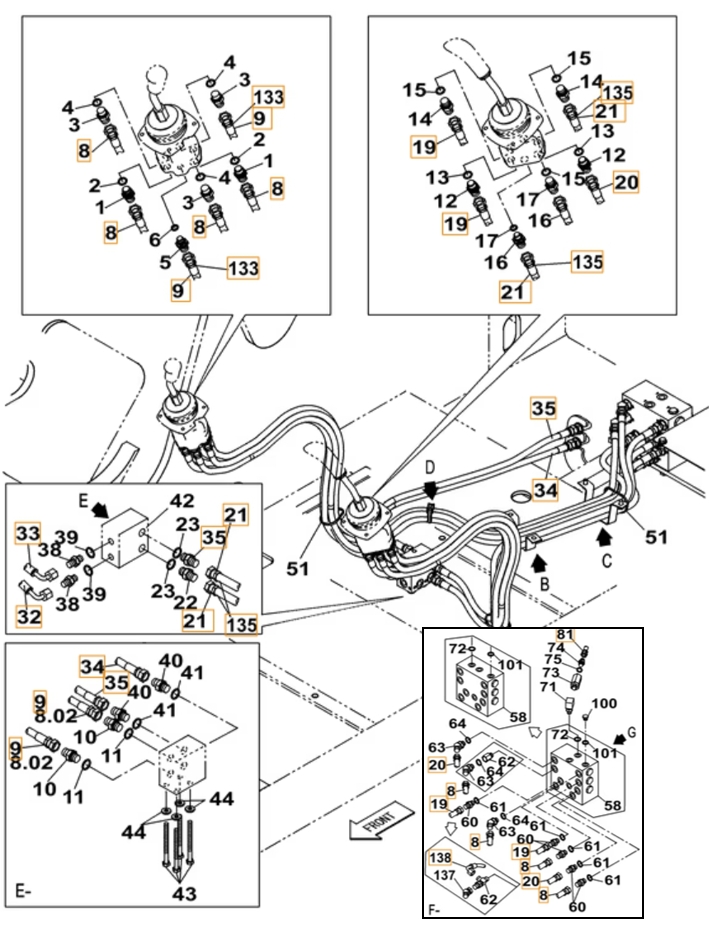

Installation diagram — Pipe No. 19

Locate Pipe No. 19 in the diagram, then confirm part number 159217A1 before removing the hose.

Case CX220B installation diagram showing hydraulic hose 159217A1 at Pipe No. 19 — **Case CX220B**Part 159217A1 · Pipe No. 19Open full-size diagram

Repair specifications

Part number: 159217A1
Diagram pipe number: 19
Installation route: 左手柄~中转接头
Hose specification: DN10;1SN-06;18MPa
Finished length: 1,850 mm
Working pressure: 18 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 8

159211A1

Installation route: 右手柄~中转接头

Length: 2,000 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 112

KHJ11600

Installation route: 中转接头~分配阀后

Length: 1,350 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 45° elbow, British female thread, 60° external cone seatOriginal Chinese: 45°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 80

KHJ11570

Installation route: 中转接头~分配阀前

Length: 1,300 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 9

159213A1

Installation route: 右手柄~进回油阀

Length: 1,150 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 111

KHJ2054

Installation route: 中转接头~分配阀后

Length: 1,200 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 20

KRJ4381

Installation route: 左手柄~中转接头

Length: 1,800 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 110

KHJ11530

Installation route: 中转接头~分配阀后

Length: 1,250 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 77

KHJ11590

Installation route: 中转接头~分配阀前

Length: 1,400 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications
