Individual hose record

KHJ14650 Hose Repair Specifications

Excavator · Case · CX250E LC · Attachments – Breaker

Finished length650 mm

Locate this hose

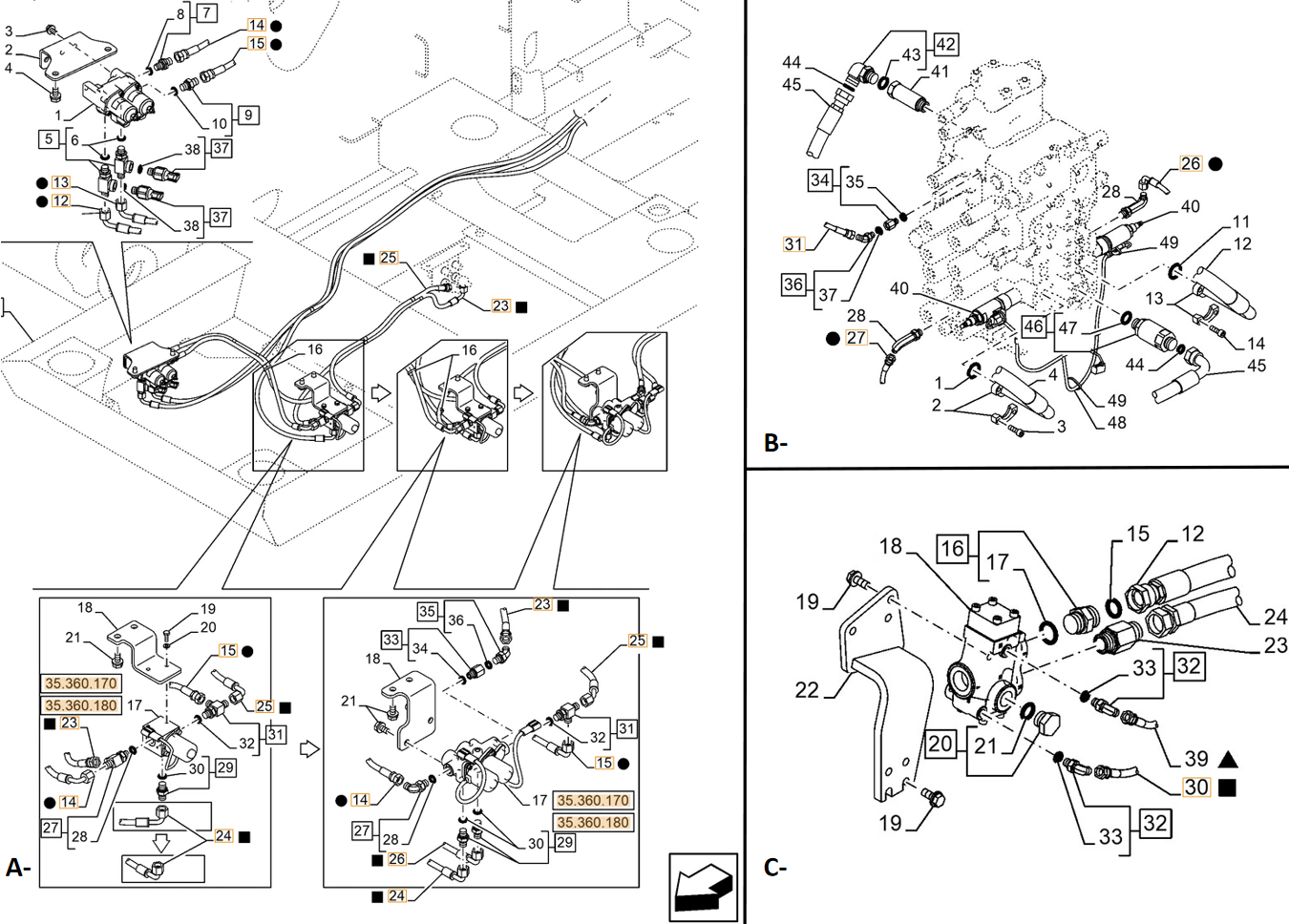

Installation diagram — Pipe No. 25

Locate Pipe No. 25 in the diagram, then confirm part number KHJ14650 before removing the hose.

Case CX250E LC installation diagram showing hydraulic hose KHJ14650 at Pipe No. 25 — **Case CX250E LC**Part KHJ14650 · Pipe No. 25Open full-size diagram

Repair specifications

Part number: KHJ14650
Diagram pipe number: 25
Installation route: 电磁阀(破碎器踏板)~进回油阀
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 650 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 45° elbow, British female thread, 60° external cone seatOriginal Chinese: 45°英制内螺纹60°外锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 13

KHJ2092

Installation route: 破碎器踏板~进回油阀

Length: 1,000 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 14

KHJ18020

Installation route: 破碎器踏板~分配阀后

Length: 3,550 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 13

KHJ2087

Installation route: 破碎器踏板~进回油阀

Length: 800 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 11

KRV19740

Installation route: 小臂破碎器截止阀左

Length: 1,500 mm
Specification: DN25;4SP-16;32.5MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 12

KHJ2088

Installation route: 破碎器踏板~进回油阀

Length: 900 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. B1

KRJ10750

Installation route: 液压泵右~吸油铁管

Length: 650 mm
Specification: DN25;2SN-16;16.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 23

KHJ2195

Installation route: 电磁阀(破碎器踏板)~进回油阀

Length: 680 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 15

KHJ16300

Installation route: 破碎器踏板~分配阀前

Length: 3,650 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications
