Individual hose record

4432697 Hose Repair Specifications

Excavator · Hitachi · EX35U · Control Lever

Finished length1,070 mm

Locate this hose

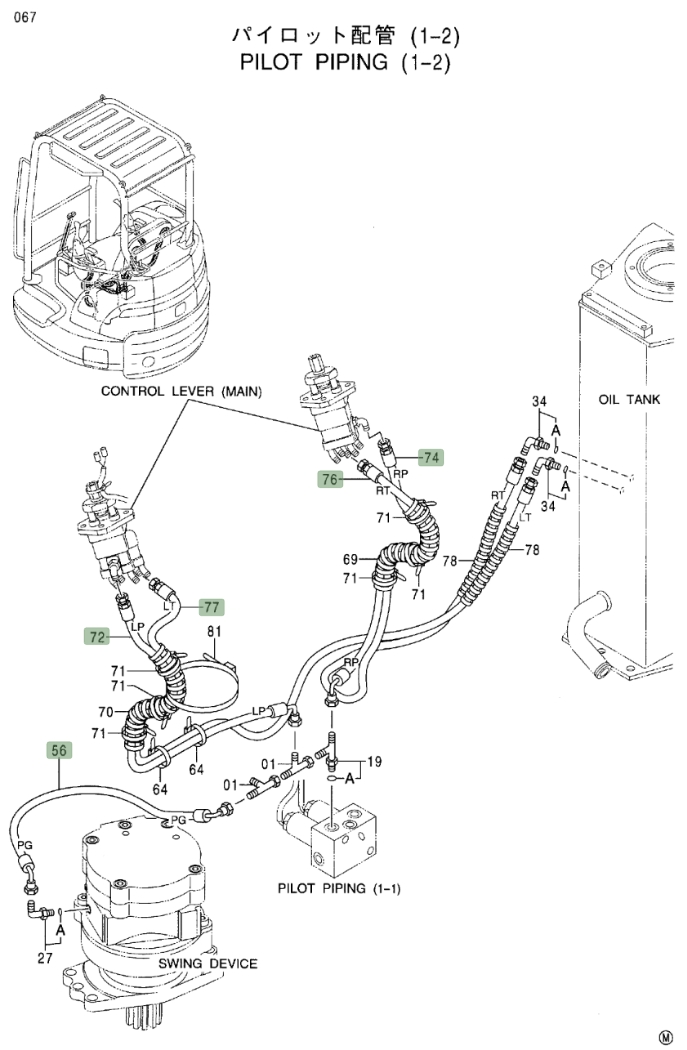

Installation diagram — Pipe No. 76

Locate Pipe No. 76 in the diagram, then confirm part number 4432697 before removing the hose.

Hitachi EX35U installation diagram showing hydraulic hose 4432697 at Pipe No. 76 — Hitachi EX35UPart 4432697 · Pipe No. 76Open full-size diagram

Repair specifications

Part number: 4432697
Diagram pipe number: 76
Installation route: 右手柄~液压油箱
Hose specification: DN5;2层纤维-3;14MPa
Finished length: 1,070 mm
Working pressure: 14 MPa
Left fitting: 英制内螺纹30°外锥
Right fitting: 英制内螺纹30°外锥
Quantity: 1
