Individual hose record

KRV19740 Hose Repair Specifications

Excavator · Case · CX250C LC · Attachments – Breaker

Finished length1,500 mm

Locate this hose

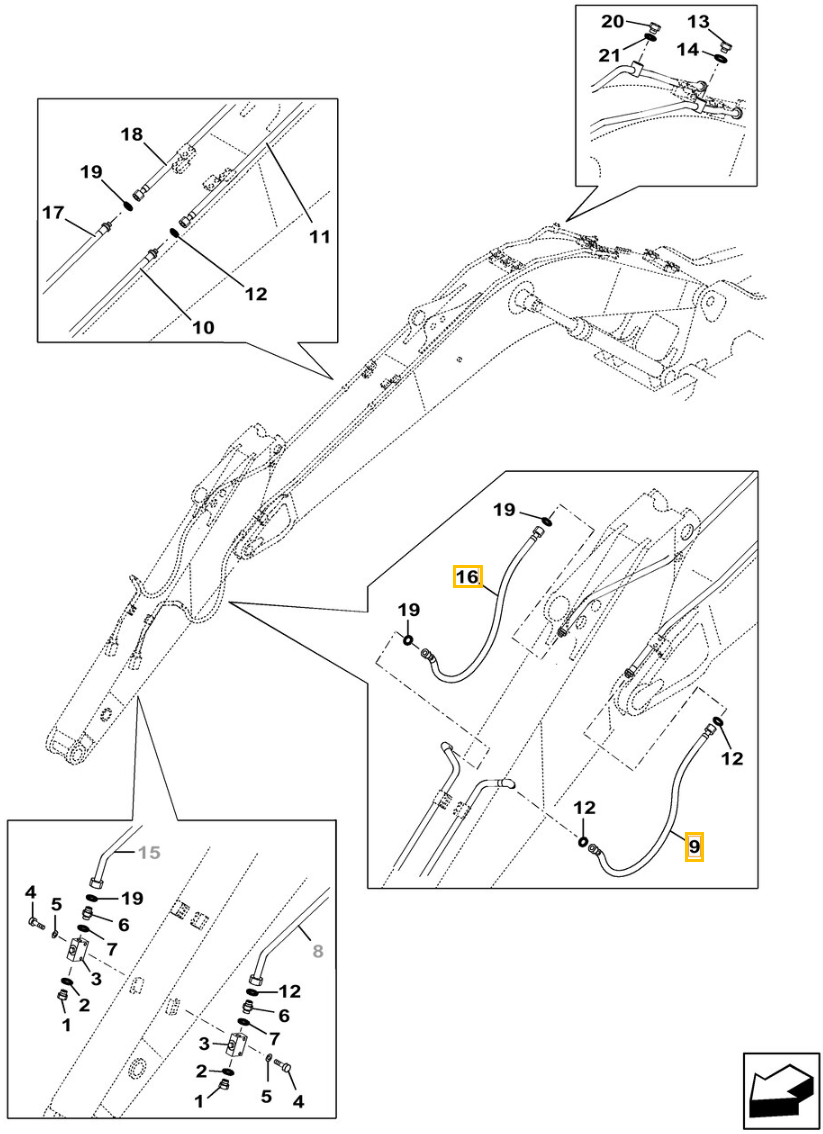

Installation diagram — Pipe No. 16

Locate Pipe No. 16 in the diagram, then confirm part number KRV19740 before removing the hose.

Case CX250C LC installation diagram showing hydraulic hose KRV19740 at Pipe No. 16 — **Case CX250C LC**Part KRV19740 · Pipe No. 16Open full-size diagram

Repair specifications

Part number: KRV19740
Diagram pipe number: 16
Installation route: 小臂破碎器截止阀右
Hose specification: DN25;4SP-16;32.5MPa
Finished length: 1,500 mm
Working pressure: 32.5 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. A33-C33

KHJ2089

Installation route: 破碎器踏板~进回油阀

Length: 900 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 英制内螺纹60°内锥
Right fitting: 英制内螺纹60°内锥

View full repair specifications

Diagram Pipe No. F74-N74

KHJ2194

Installation route: 破碎器踏板~电磁阀(破碎器踏板)

Length: 650 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 90°英制内螺纹60°内锥
Right fitting: 英制内螺纹60°内锥

View full repair specifications

Diagram Pipe No. 9

KRV19740

Installation route: 小臂破碎器截止阀左

Length: 1,500 mm
Specification: DN25;4SP-16;32.5MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. A35-C35

KHJ15170

Installation route: 破碎器踏板~分配阀后

Length: 3,500 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. B71-F71

KHJ2199

Installation route: 破碎器踏板~分配阀后

Length: 2,950 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. B96-N96

KHJ2087

Installation route: 进回油阀~电磁阀(破碎器踏板)

Length: 800 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. A36-C36

KHJ18020

Installation route: 破碎器踏板~分配阀前

Length: 3,550 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. B95-N95

KHJ2036

Installation route: 进回油阀~电磁阀(破碎器踏板)

Length: 750 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications
