Individual hose record

KHJ2166 Hose Repair Specifications

Excavator · Case · CX135SR · Pedal

Finished length2,300 mm

Locate this hose

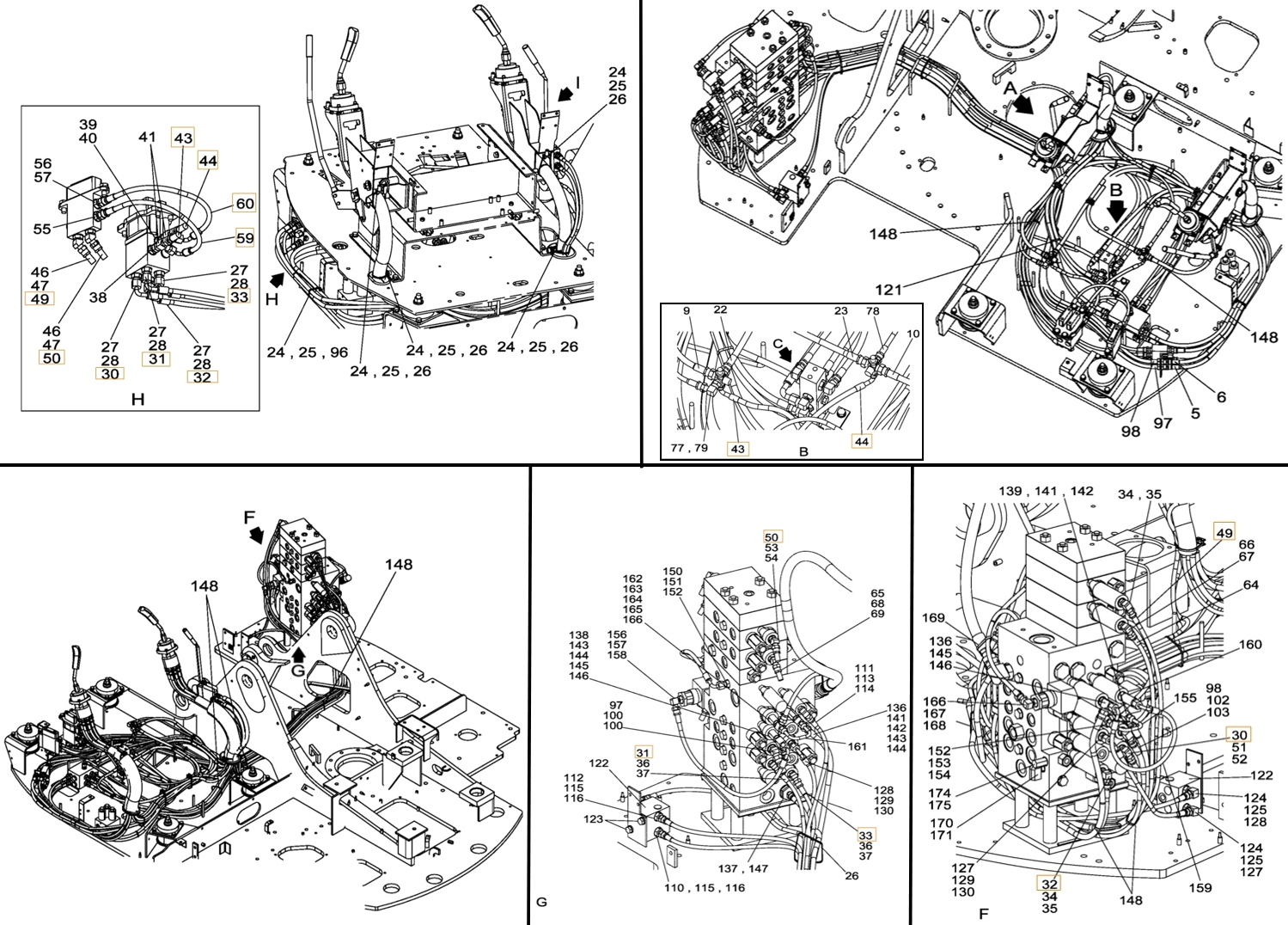

Installation diagram — Pipe No. 31

Locate Pipe No. 31 in the diagram, then confirm part number KHJ2166 before removing the hose.

Part number: KHJ2166
Diagram pipe number: 31
Installation route: 行走踏板~分配阀后
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 2,300 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity: 1

Same system

Diagram Pipe No. 33

Installation route: 行走踏板~分配阀后

Length: 2,200 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

Diagram Pipe No. 59

Installation route: 行走踏板~破碎器踏板

Length: 450 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

Diagram Pipe No. 20

Installation route: 行走踏板~破碎器踏板

Length: 320 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
