Individual hose record

4323278 Hose Repair Specifications

Excavator · Hitachi · ZX330LC · Attachments

Finished length650 mm

Locate this hose

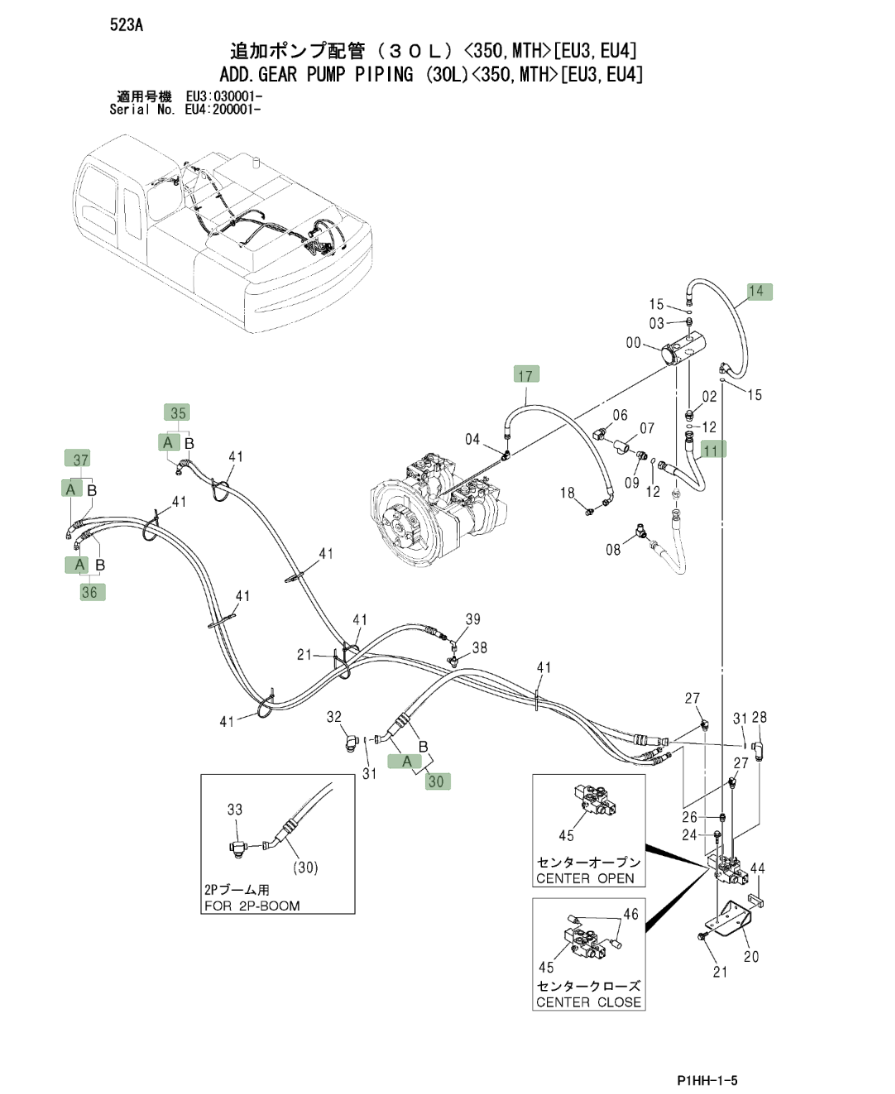

Installation diagram — Pipe No. 11

Locate Pipe No. 11 in the diagram, then confirm part number 4323278 before removing the hose.

Hitachi ZX330LC installation diagram showing hydraulic hose 4323278 at Pipe No. 11 — Hitachi ZX330LCPart 4323278 · Pipe No. 11Open full-size diagram

Repair specifications

Part number: 4323278
Diagram pipe number: 11
Installation route: 先导泵~吸油铁管
Hose specification: DN19;1SN-12;7Mpa
Finished length: 650 mm
Working pressure: 7 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 27

4452733

Installation route: 过渡阀块(分节大臂)~过渡阀块(分节大臂)

Length: 450 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥

View full repair specifications
