- Length
- 410 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 美制内螺纹74°内锥
Individual hose record
4325549 Hose Repair Specifications
Excavator · Hitachi · ZX345USLC-6N · Attachments
Finished length380 mm
Locate this hose

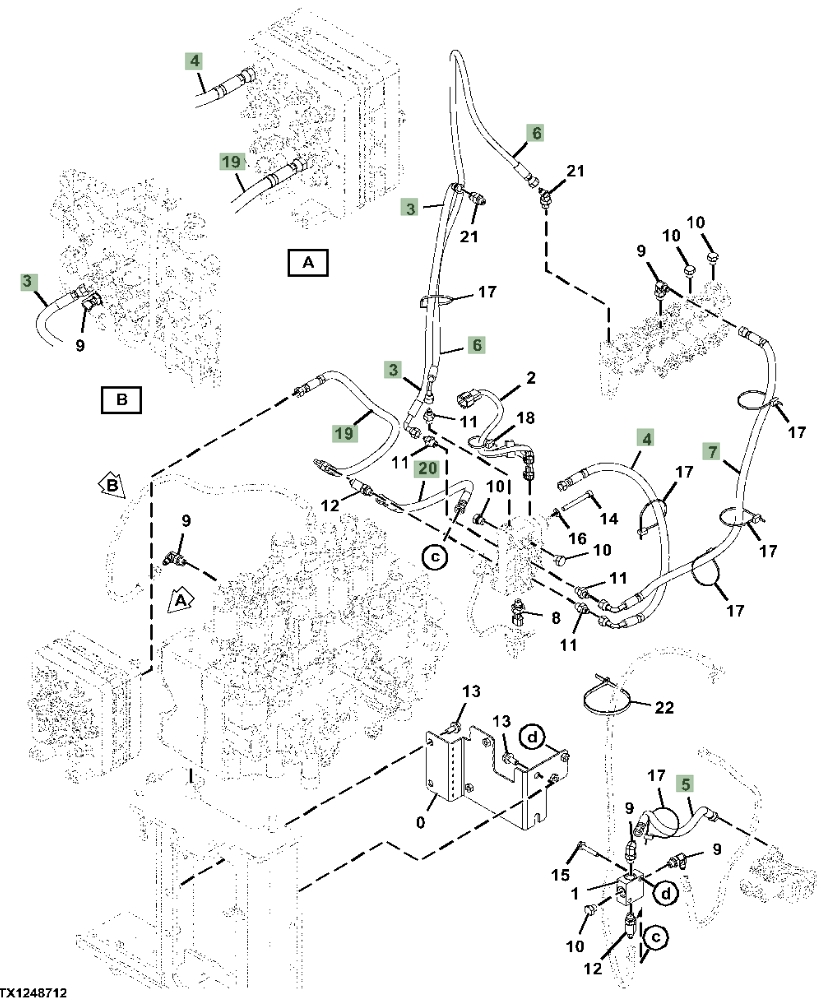

Installation diagram — Pipe No. 20
Locate Pipe No. 20 in the diagram, then confirm part number 4325549 before removing the hose.
Repair specifications
- Part number
- 4325549
- Diagram pipe number
- 20
- Installation route
- 电磁阀(流速切换)~节流阀
- Hose specification
- DN6;1SN-4;7Mpa
- Finished length
- 380 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
