Individual hose record

DS2054512 Hose Repair Specifications

Excavator · Doosan · DX85R-3 · Hydraulic Pump

Finished length680 mm

Locate this hose

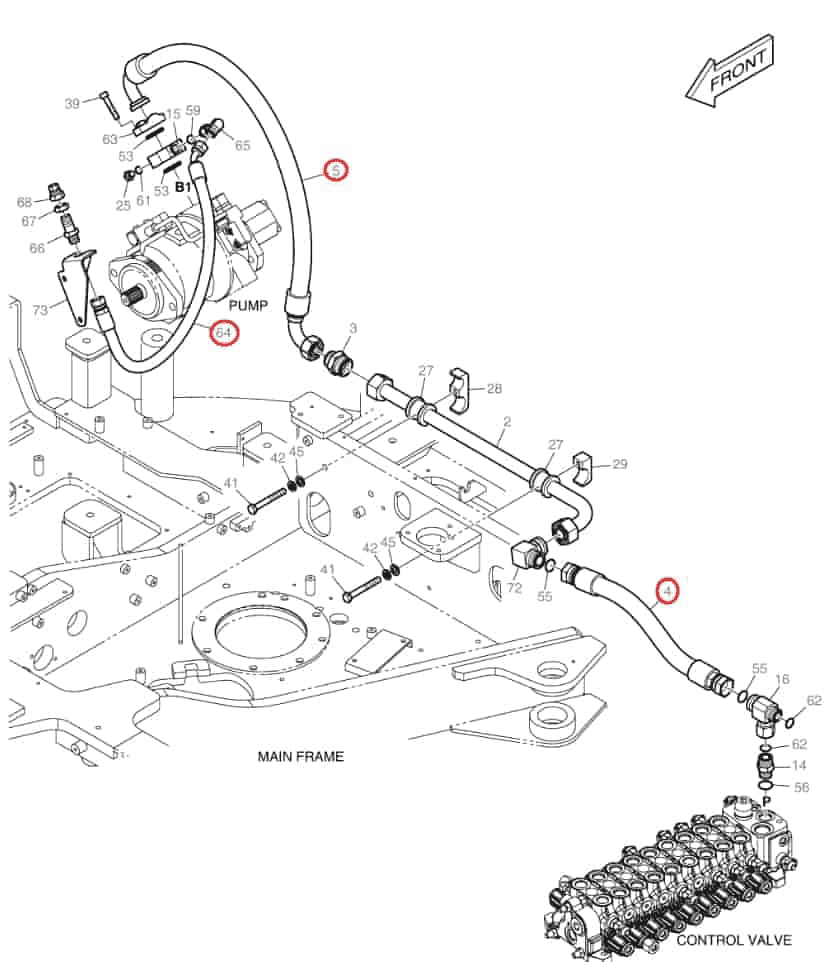

Installation diagram — Pipe No. 64

Locate Pipe No. 64 in the diagram, then confirm part number DS2054512 before removing the hose.

Part number: DS2054512
Diagram pipe number: 64
Installation route: 液压泵B1口~堵头(减震管)
Hose specification: DN13;4SP-08;41.5MPa
Finished length: 680 mm
Working pressure: 41.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 45° elbow, British female thread, 60° external cone seatOriginal Chinese: 45°英制内螺纹60°外锥
Quantity: 1

Same system

Diagram Pipe No. 13

Installation route: 液压泵L口~液压油箱

Length: 450 mm
Specification: DN13;1SN-08;16MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

Diagram Pipe No. 117

Installation route: 液压泵X口~电磁阀LS口

Length: 390 mm
Specification: DN6;2SN-04;40MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 45° elbow, British female thread, 60° external cone seatOriginal Chinese: 45°英制内螺纹60°外锥

Diagram Pipe No. 43

Installation route: 液压泵B2口~铁管(液压泵)

Length: 540 mm
Specification: DN13;1SN-08;16MPa
Left fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
