Individual hose record
KRV2405 Hose Repair Specifications
Excavator · Case · CX225SR · Boom Assembly
Finished length1,000 mm
Locate this hose

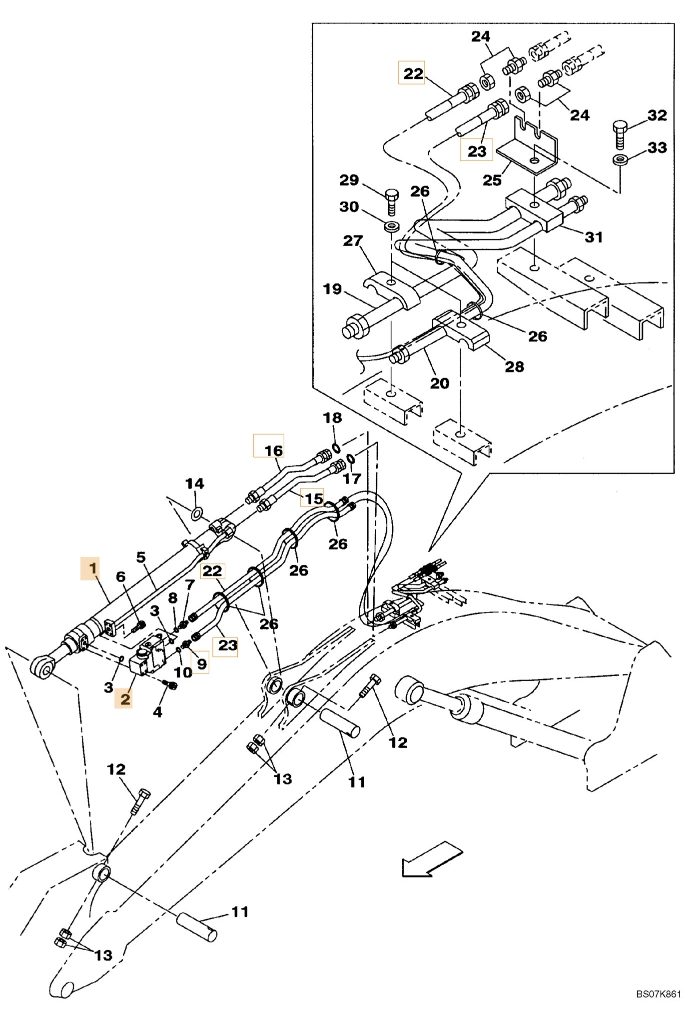

Installation diagram — Pipe No. 15
Locate Pipe No. 15 in the diagram, then confirm part number KRV2405 before removing the hose.
Repair specifications
- Part number
- KRV2405
- Diagram pipe number
- 15
- Installation route
- Arm cylinder — leftOriginal Chinese: 小臂油缸左
- Hose specification
- DN19;4SP-12;35MPa
- Finished length
- 1,000 mm
- Working pressure
- 35 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 英制外螺纹平面密封
- Quantity
- 1
