Individual hose record

DS2013995 Hose Repair Specifications

Excavator · Doosan · DX55 · Swivel Joint

Finished length1,250 mm

Locate this hose

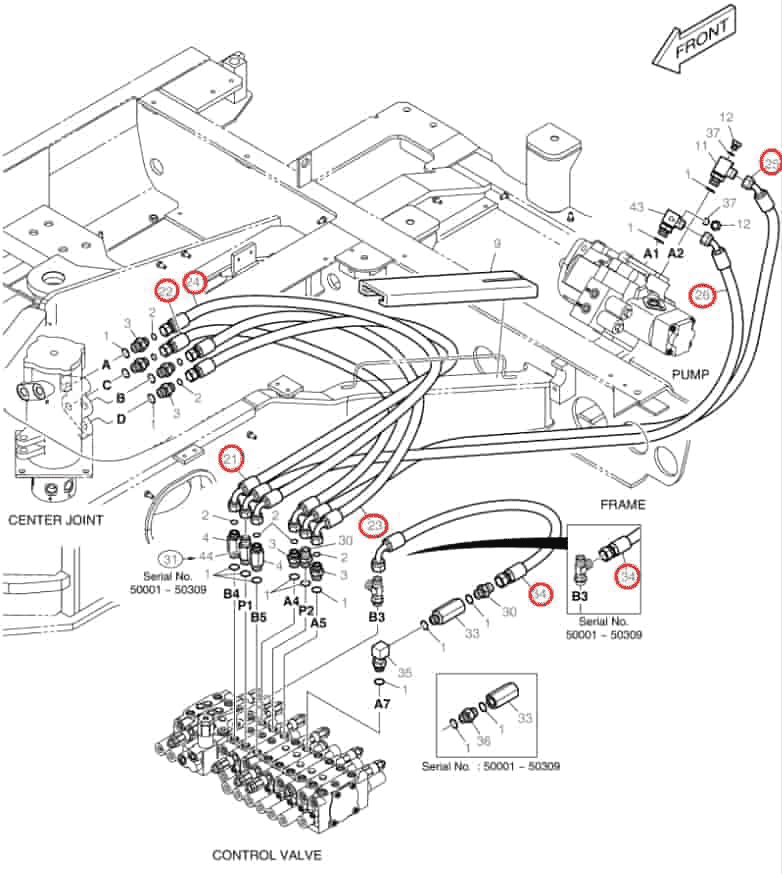

Installation diagram — Pipe No. 22

Locate Pipe No. 22 in the diagram, then confirm part number DS2013995 before removing the hose.

Part number: DS2013995
Diagram pipe number: 22
Installation route: 回转接头C口~分配阀A4口
Hose specification: DN13;1SN-08;16MPa
Finished length: 1,250 mm
Working pressure: 16 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
Quantity: 1

Same system

Diagram Pipe No. 6

Installation route: 回转接头C口~行走马达P2口

Length: 1,320 mm
Specification: DN13;4SP-08;41.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 45° elbow, British female thread, 60° external cone seatOriginal Chinese: 45°英制内螺纹60°外锥

Diagram Pipe No. 9

Installation route: 回转接头A口~行走马达P2口

Length: 1,500 mm
Specification: DN10;4SP-06;44.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 45° elbow, British female thread, 60° external cone seatOriginal Chinese: 45°英制内螺纹60°外锥

Diagram Pipe No. 47

Installation route: 回转接头~回转马达DB口

Length: 450 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 45° elbow, British female thread, 60° external cone seatOriginal Chinese: 45°英制内螺纹60°外锥

Diagram Pipe No. 5

Installation route: 回转接头D口~行走马达P1口

Length: 1,460 mm
Specification: DN13;4SP-08;41.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
