Individual hose record

730502000798 Hose Repair Specifications

Excavator · Sunward · SWE215F-5 · Control Lever

Finished length1,580 mm

Locate this hose

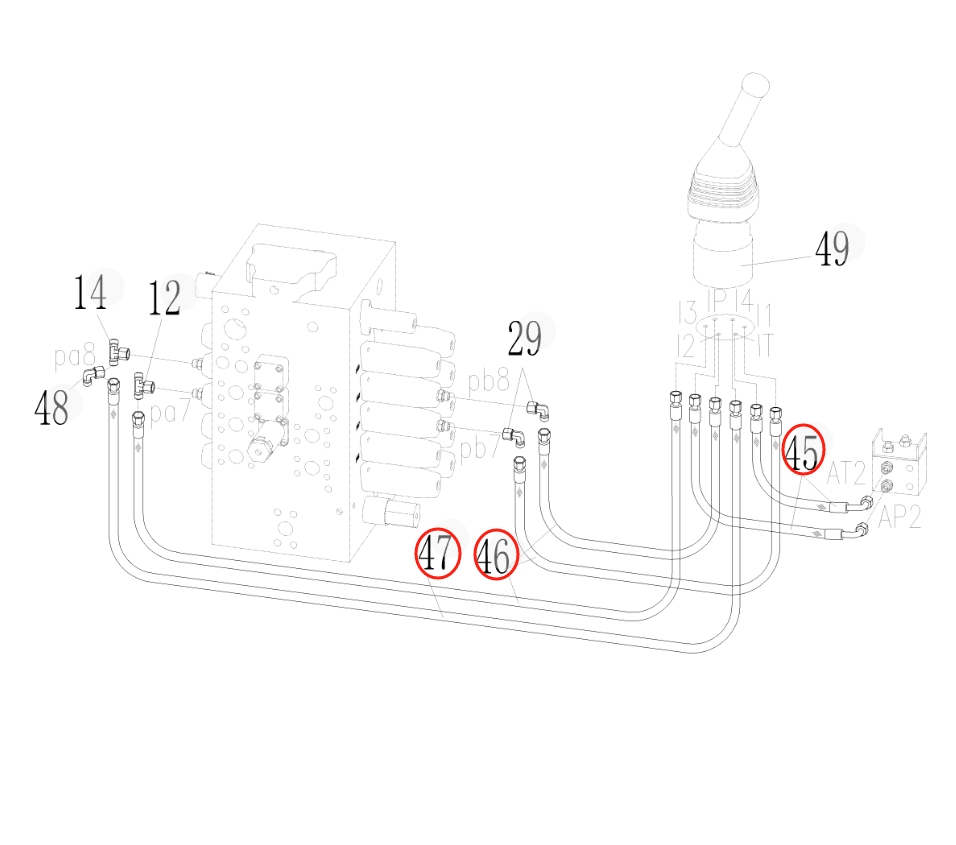

Installation diagram — Pipe No. 45

Locate Pipe No. 45 in the diagram, then confirm part number 730502000798 before removing the hose.

Sunward SWE215F-5 installation diagram showing hydraulic hose 730502000798 at Pipe No. 45 — Sunward SWE215F-5Part 730502000798 · Pipe No. 45Open full-size diagram

Repair specifications

Part number: 730502000798
Diagram pipe number: 45
Installation route: 右手柄~进回油阀
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 1,580 mm
Working pressure: 22.5 MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 90°公制内螺纹24°锥带O形圈-轻型
Quantity: 2

Same system

Related Hoses

Diagram Pipe No. 46

730501001405

Installation route: 右手柄~分配阀右

Length: 2,950 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 公制内螺纹24°锥带O形圈-轻型

View full repair specifications

Diagram Pipe No. 3

730501001026

Installation route: 右手柄I4~模式切换阀Q7

Length: 1,850 mm
Specification: DN8;1SN-05;22.5MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 公制内螺纹24°锥带O形圈-轻型

View full repair specifications

Diagram Pipe No. 4

730501000574

Installation route: 右手柄I2~模式切换阀Q3

Length: 1,850 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 公制内螺纹24°锥带O形圈-轻型

View full repair specifications

Diagram Pipe No. 45

730502000798

Installation route: 左手柄~进回油阀

Length: 1,580 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 90°公制内螺纹24°锥带O形圈-轻型

View full repair specifications

Diagram Pipe No. 46

730501001405

Installation route: 右手柄~分配阀左

Length: 2,950 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 公制内螺纹24°锥带O形圈-轻型

View full repair specifications
