Individual hose record
4704679 Hose Repair Specifications
Excavator · Hitachi · ZX26U-5N · Control Lever
Finished length740 mm
Locate this hose

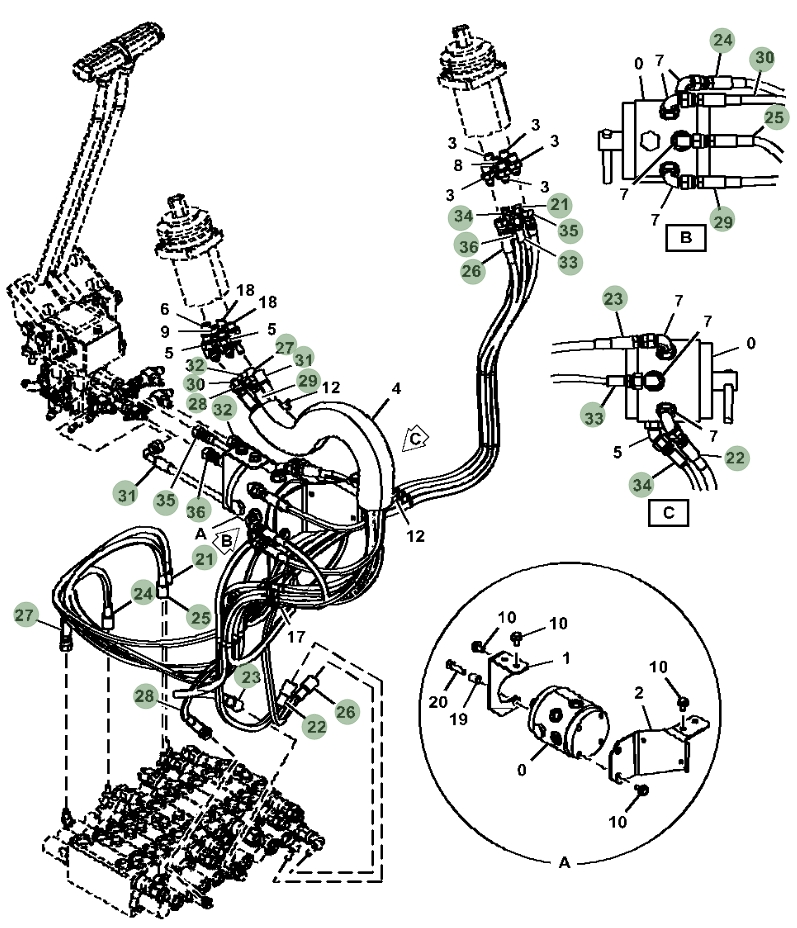

Installation diagram — Pipe No. 29
Locate Pipe No. 29 in the diagram, then confirm part number 4704679 before removing the hose.
Repair specifications
- Part number
- 4704679
- Diagram pipe number
- 29
- Installation route
- 左手柄~模式转换阀
- Hose specification
- DN6;1SN-4;7Mpa
- Finished length
- 740 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
