Individual hose record

4631051 Hose Repair Specifications

Excavator · Hitachi · ZX210FLC-FE-6N · Grease Lines

Finished length3,000 mm

Locate this hose

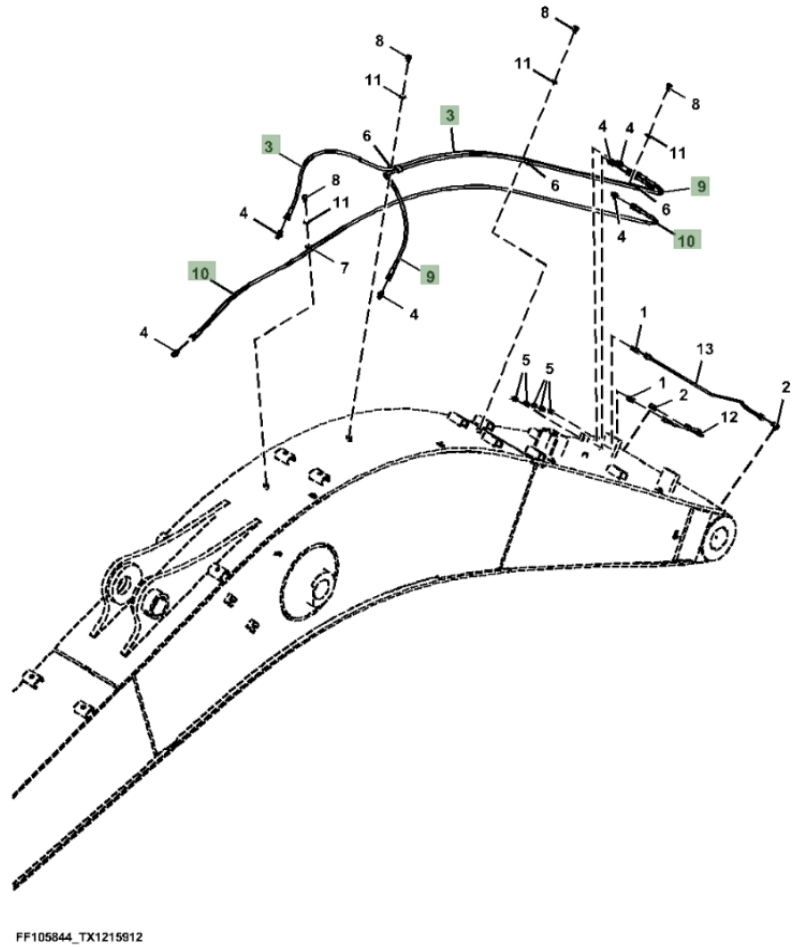

Installation diagram — Pipe No. 3

Locate Pipe No. 3 in the diagram, then confirm part number 4631051 before removing the hose.

Hitachi ZX210FLC-FE-6N installation diagram showing hydraulic hose 4631051 at Pipe No. 3 — Hitachi ZX210FLC-FE-6NPart 4631051 · Pipe No. 3Open full-size diagram

Repair specifications

Part number: 4631051
Diagram pipe number: 3
Installation route: 大臂油缸黄油管
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 3,000 mm
Working pressure: 22.5 MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 10

4622684

Installation route: Arm-cylinder grease lineOriginal Chinese: 小臂油缸黄油管

Length: 3,400 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 9

4473135

Installation route: 大臂油缸黄油管

Length: 3,100 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥

View full repair specifications
