Individual hose record

4469297 Hose Repair Specifications

Excavator · Hitachi · ZX210W · Attachments – Quick Coupler

Finished length810 mm

Locate this hose

Installation diagram — Pipe No. 14

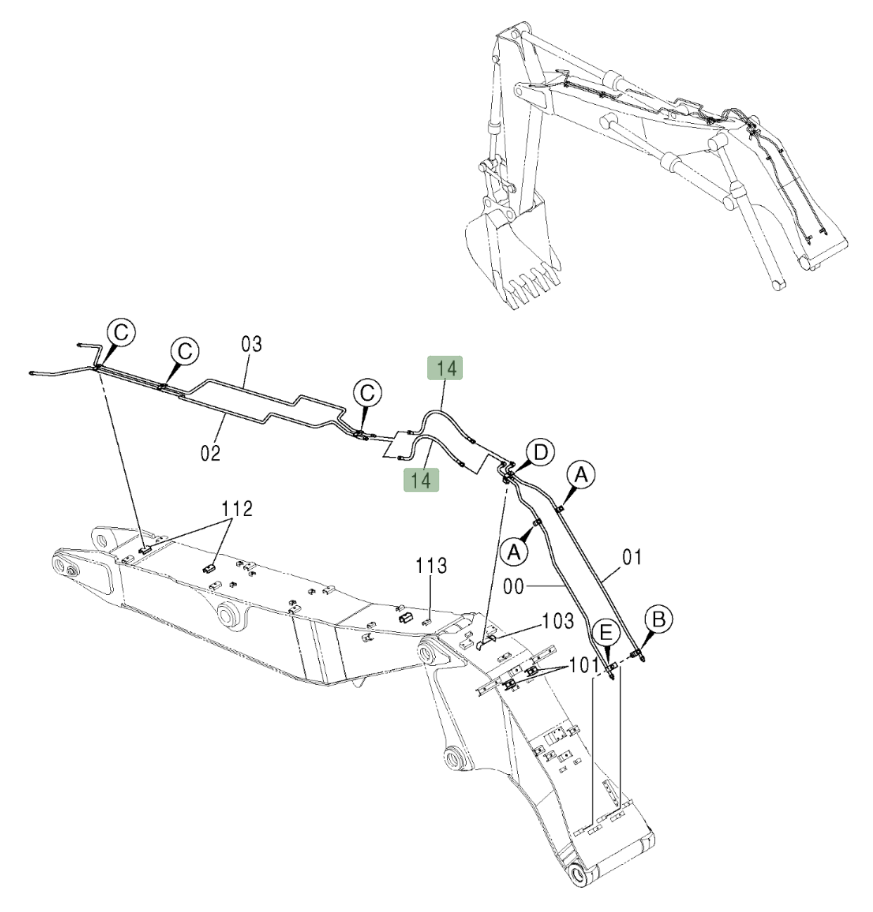

Locate Pipe No. 14 in the diagram, then confirm part number 4469297 before removing the hose.

Hitachi ZX210W installation diagram showing hydraulic hose 4469297 at Pipe No. 14 — Hitachi ZX210WPart 4469297 · Pipe No. 14Open full-size diagram

Repair specifications

Part number: 4469297
Diagram pipe number: 14
Installation route: 大臂(前段)~大臂(后段)
Hose specification: DN10;2SN-6;34.5MPa
Finished length: 810 mm
Working pressure: 34.5 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥
Quantity: 2
