Individual hose record

73050200A065 Hose Repair Specifications

Excavator · Sunward · SWE155E · Boom Assembly

Finished length1,080 mm

Locate this hose

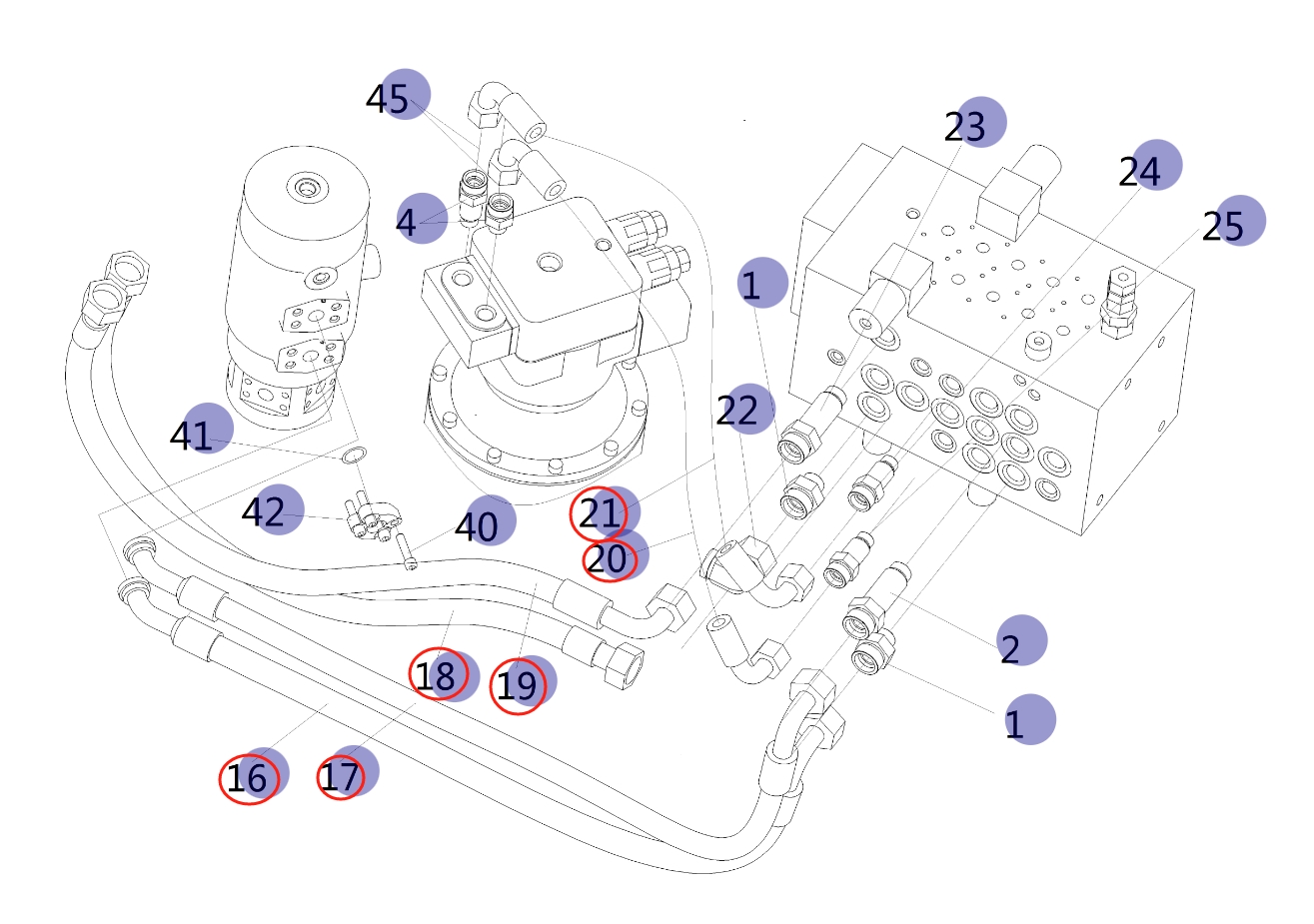

Installation diagram — Pipe No. 19

Locate Pipe No. 19 in the diagram, then confirm part number 73050200A065 before removing the hose.

Sunward SWE155E installation diagram showing hydraulic hose 73050200A065 at Pipe No. 19 — Sunward SWE155EPart 73050200A065 · Pipe No. 19Open full-size diagram

Repair specifications

Part number: 73050200A065
Diagram pipe number: 19
Installation route: 大臂左1~分配阀左
Hose specification: DN20;6SH-12;35MPa
Finished length: 1,080 mm
Working pressure: 35 MPa
Left fitting: 公制内螺纹24°锥带O形圈-重型
Right fitting: 90°公制内螺纹24°锥带O形圈-重型
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 11

730501005408

Installation route: 大臂左4~分配阀右B7

Length: 1,180 mm
Specification: DN16;6SH-10;42MPa
Left fitting: 公制内螺纹24°锥带O形圈-重型
Right fitting: 公制内螺纹24°锥带O形圈-重型

View full repair specifications

Diagram Pipe No. 12

73050200A064

Installation route: 大臂左3~分配阀右A7

Length: 1,200 mm
Specification: DN16;6SH-10;42MPa
Left fitting: 公制内螺纹24°锥带O形圈-重型
Right fitting: 90°公制内螺纹24°锥带O形圈-重型

View full repair specifications

Diagram Pipe No. 18

73050200A066

Installation route: 大臂左2~分配阀左

Length: 1,090 mm
Specification: DN20;6SH-12;35MPa
Left fitting: 公制内螺纹24°锥带O形圈-重型
Right fitting: 公制内螺纹24°锥带O形圈-重型

View full repair specifications

Diagram Pipe No. 10

73050200A056

Installation route: Arm cylinder — rightOriginal Chinese: 小臂油缸右

Length: 940 mm
Specification: DN20;6SH-12;35MPa
Left fitting: 公制内螺纹24°锥带O形圈-重型
Right fitting: 90° heavy-series flangeOriginal Chinese: 90°法兰-重型

View full repair specifications

Diagram Pipe No. 9

730501005407

Installation route: Arm cylinder — leftOriginal Chinese: 小臂油缸左

Length: 920 mm
Specification: DN20;6SH-12;35MPa
Left fitting: 公制内螺纹24°锥带O形圈-重型
Right fitting: 公制内螺纹24°锥带O形圈-重型

View full repair specifications

Diagram Pipe No. 15

730501005409

Installation route: 大臂油缸

Length: 690 mm
Specification: DN16;6SH-10;42MPa
Left fitting: 公制内螺纹24°锥带O形圈-重型
Right fitting: 公制内螺纹24°锥带O形圈-重型

View full repair specifications
