Individual hose record
KHJ1306 Hose Repair Specifications
Excavator · Case · CX160 · Attachments – Cylinder Lock Valve
Finished length550 mm
Locate this hose

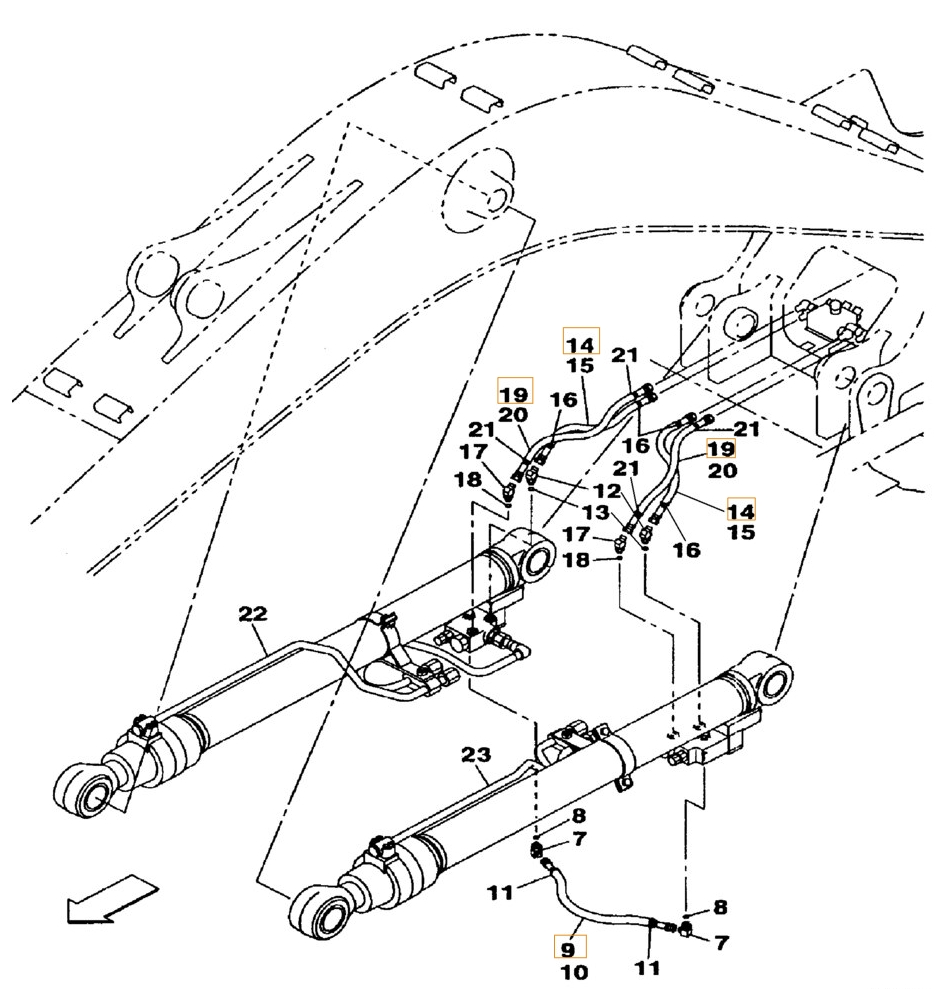

Installation diagram — Pipe No. 14
Locate Pipe No. 14 in the diagram, then confirm part number KHJ1306 before removing the hose.
Repair specifications
- Part number
- KHJ1306
- Diagram pipe number
- 14
- Installation route
- 大臂油缸锁止阀~前置多管阀
- Hose specification
- DN10;1SN-06;18MPa
- Finished length
- 550 mm
- Working pressure
- 18 MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Quantity
- 2
