Individual hose record

KRJ10750 Hose Repair Specifications

Excavator · Case · CX210B SL · Control Valve

Finished length650 mm

Locate this hose

Installation diagram — Pipe No. 10

Locate Pipe No. 10 in the diagram, then confirm part number KRJ10750 before removing the hose.

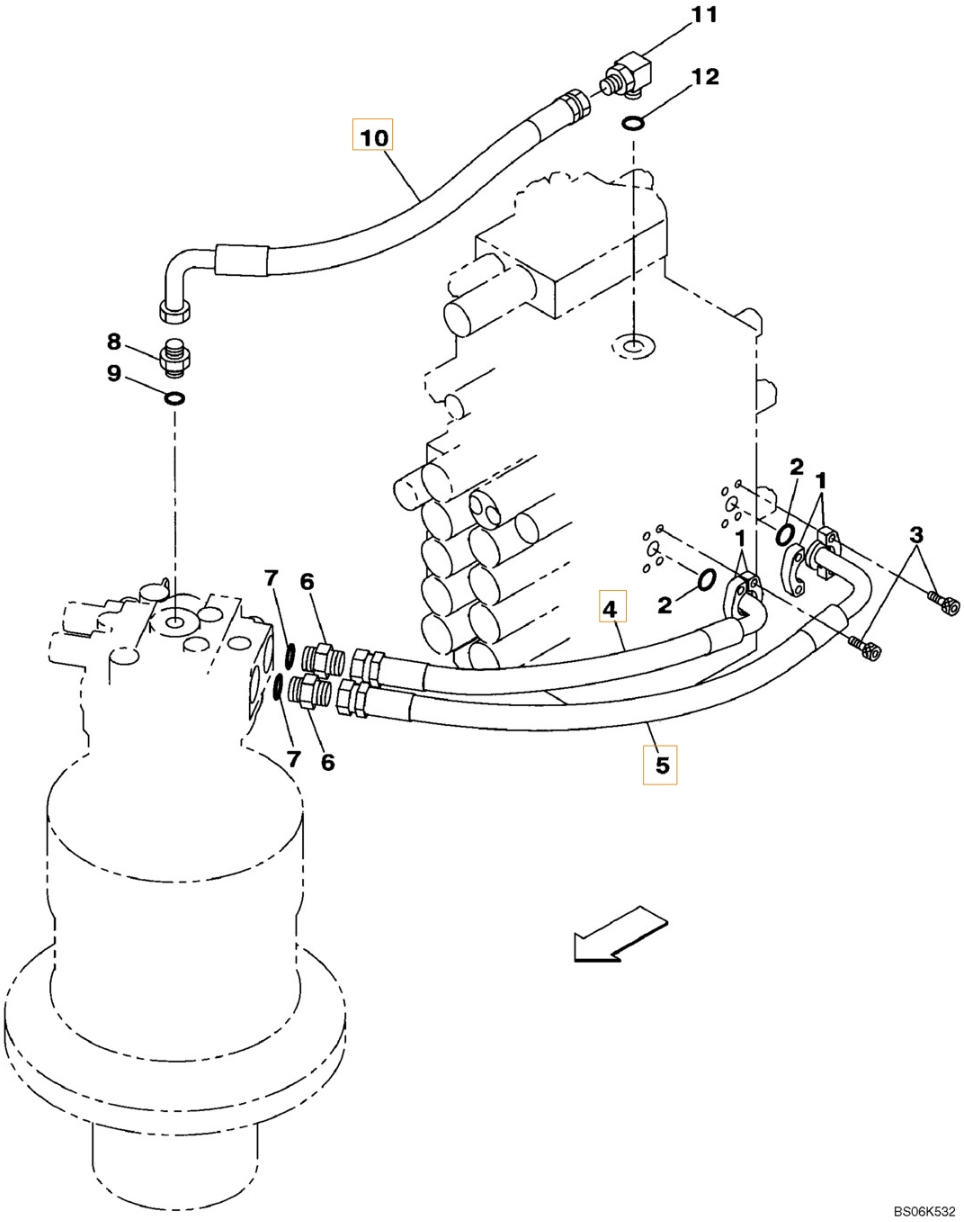

Case CX210B SL installation diagram showing hydraulic hose KRJ10750 at Pipe No. 10 — **Case CX210B SL**Part KRJ10750 · Pipe No. 10Open full-size diagram

Repair specifications

Part number: KRJ10750
Diagram pipe number: 10
Installation route: 分配阀上~回转马达(回油)
Hose specification: DN25;2SN-16;16.5MPa
Finished length: 650 mm
Working pressure: 16.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 196

KHJ2350

Installation route: 分配阀后~分配阀后

Length: 520 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 178

KHJ2054

Installation route: 分配阀后~缓冲阀

Length: 1,200 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 90

KHJ2181

Installation route: 分配阀前~分配阀前

Length: 580 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 157

KHJ1387

Installation route: 分配阀前~分配阀前

Length: 320 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 91

KHJ2244

Installation route: 分配阀后~分配阀右

Length: 600 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 45° elbow, British female thread, 60° external cone seatOriginal Chinese: 45°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 86

KHJ2106

Installation route: 分配阀前~液压油箱

Length: 1,600 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 143

KHJ11540

Installation route: 分配阀前~缓冲阀

Length: 1,450 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 45

KHJ12320

Installation route: 分配阀前~电磁阀

Length: 1,650 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 45° elbow, British female thread, 60° external cone seatOriginal Chinese: 45°英制内螺纹60°外锥

View full repair specifications
